Step 1
Step 3
Step 5
Step 2
Step 4
Finished
Assembly

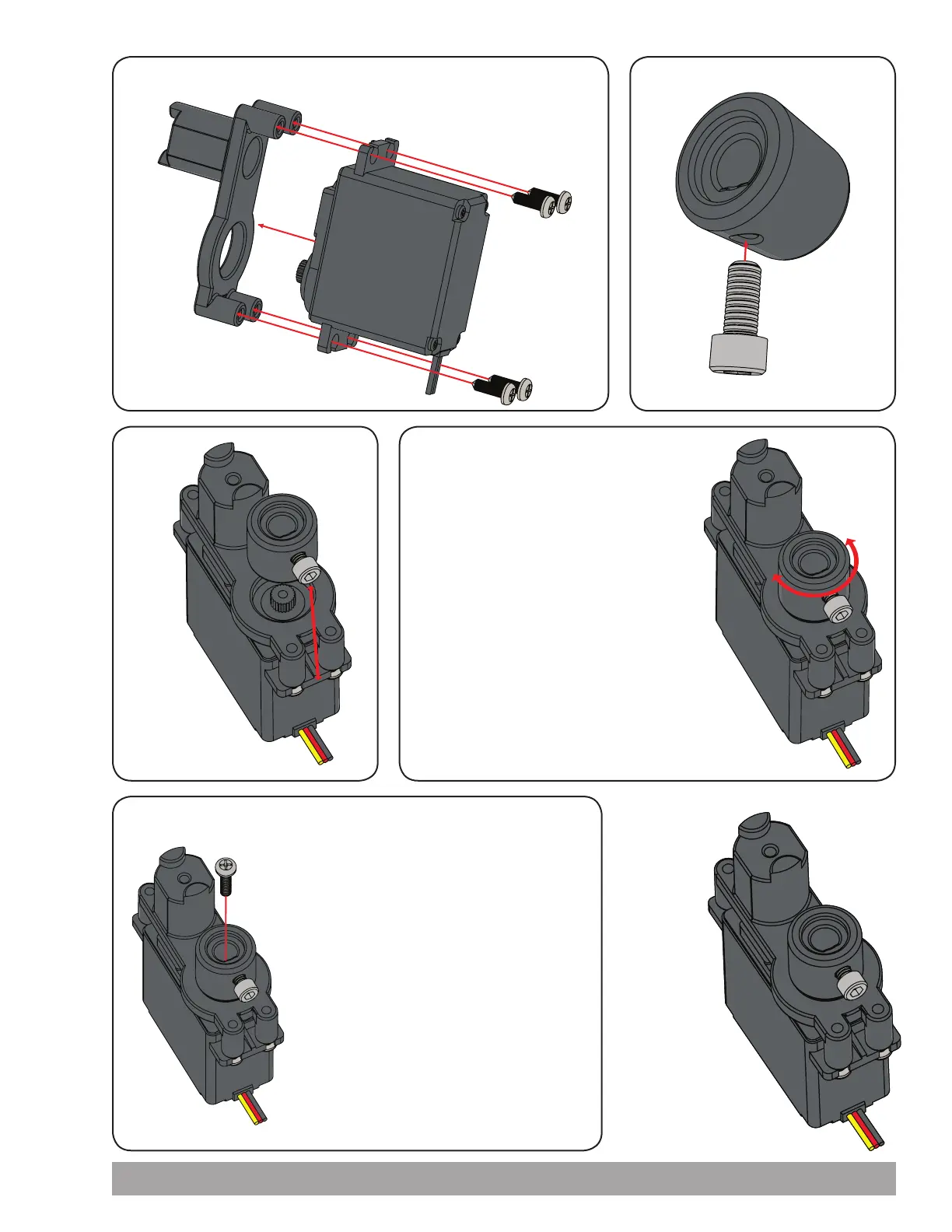

Before attaching the servo hub, you
must make sure the servo is in the
neutral position. To do this, connect
both the servo and the battery to
the receiver and turn on the power
to the remote transmitter. Make sure
both joysticks and trimmers are in the
center, or neutral, position. The servo
motor will move to its neutral position.
Line up the splines on the hub with the
splines on the servo and press the two parts
together. The set screw should line up as
close as possible with the center of the servo
case. Tighten the screw holding the hub in
place.
Using the remote transmitter, verify the
operation of the servo. If the servo operates
properly, disconnect the battery from the
receiver and the servo. Your servos are ready
for use.
