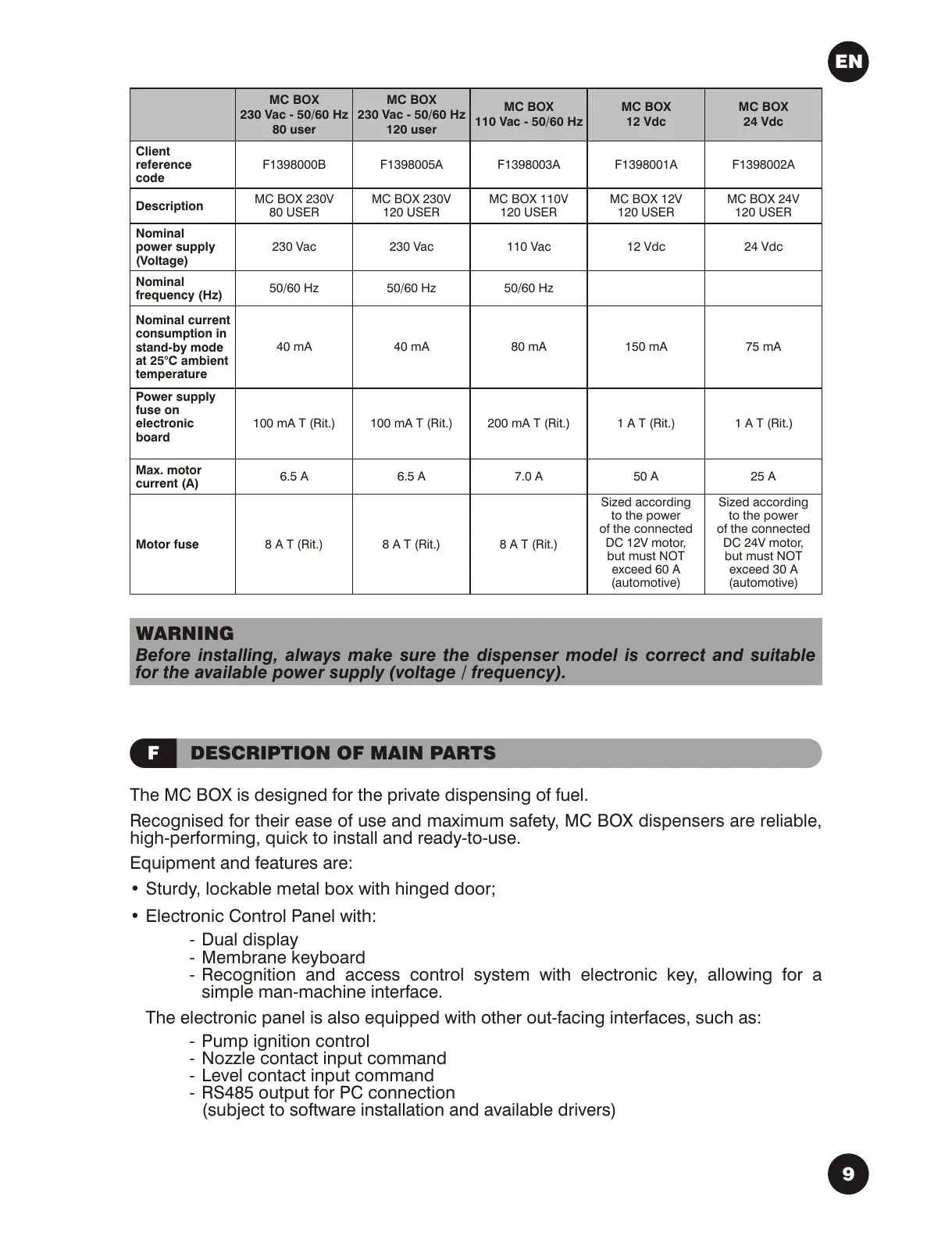

Piusi MC BOX - Description of Main Parts; MC BOX Features

9
Before installing, always make sure the dispenser model is correct and suitable
for the available power supply (voltage / frequency).
WARNING
Client
reference
code
Description
Nominal current
consumption in
stand-by mode
at 25°C ambient
temperature
Power supply
fuse on
electronic
board
Nominal
power supply
(Voltage)
Nominal
frequency (Hz)
Max. motor
current (A)
Motor fuse
F1398000B
MC BOX 230V
80 USER
40 mA
100 mA T (Rit.)
40 mA
100 mA T (Rit.)
80 mA
200 mA T (Rit.)
150 mA
1 A T (Rit.)
75 mA
1 A T (Rit.)
230 Vac230 Vac110 Vac12 Vdc24 Vdc
50/60 Hz
6.5 A
8 A T (Rit.)
50/60 Hz
6.5 A
8 A T (Rit.)
50/60 Hz
7.0 A
8 A T (Rit.)
50 A
Sized according
to the power
of the connected
DC 12V motor,
but must NOT
exceed 60 A
(automotive)
Sized according
to the power
of the connected
DC 24V motor,
but must NOT
exceed 30 A
(automotive)
25 A
MC BOX 230V
120 USER
MC BOX 110V
120 USER
MC BOX 12V
120 USER
MC BOX 24V
120 USER
F1398005AF1398003AF1398001AF1398002A
MC BOX
230 Vac - 50/60 Hz
80 user
MC BOX
230 Vac - 50/60 Hz
120 user
MC BOX
110 Vac - 50/60 Hz
MC BOX
12 Vdc
MC BOX
24 Vdc
FDESCRIPTION OF MAIN PARTS
The MC BOX is designed for the private dispensing of fuel.
Recognised for their ease of use and maximum safety, MC BOX dispensers are reliable,
high-performing, quick to install and ready-to-use.
Equipment and features are:
• Sturdy, lockable metal box with hinged door;
• Electronic Control Panel with:
-Dual display
-Membrane keyboard
-Recognition and access control system with electronic key, allowing for a
simple man-machine interface.
The electronic panel is also equipped with other out-facing interfaces, such as:
-Pump ignition control
-Nozzle contact input command
-Level contact input command
-RS485 output for PC connection
(subject to software installation and available drivers)
EN
