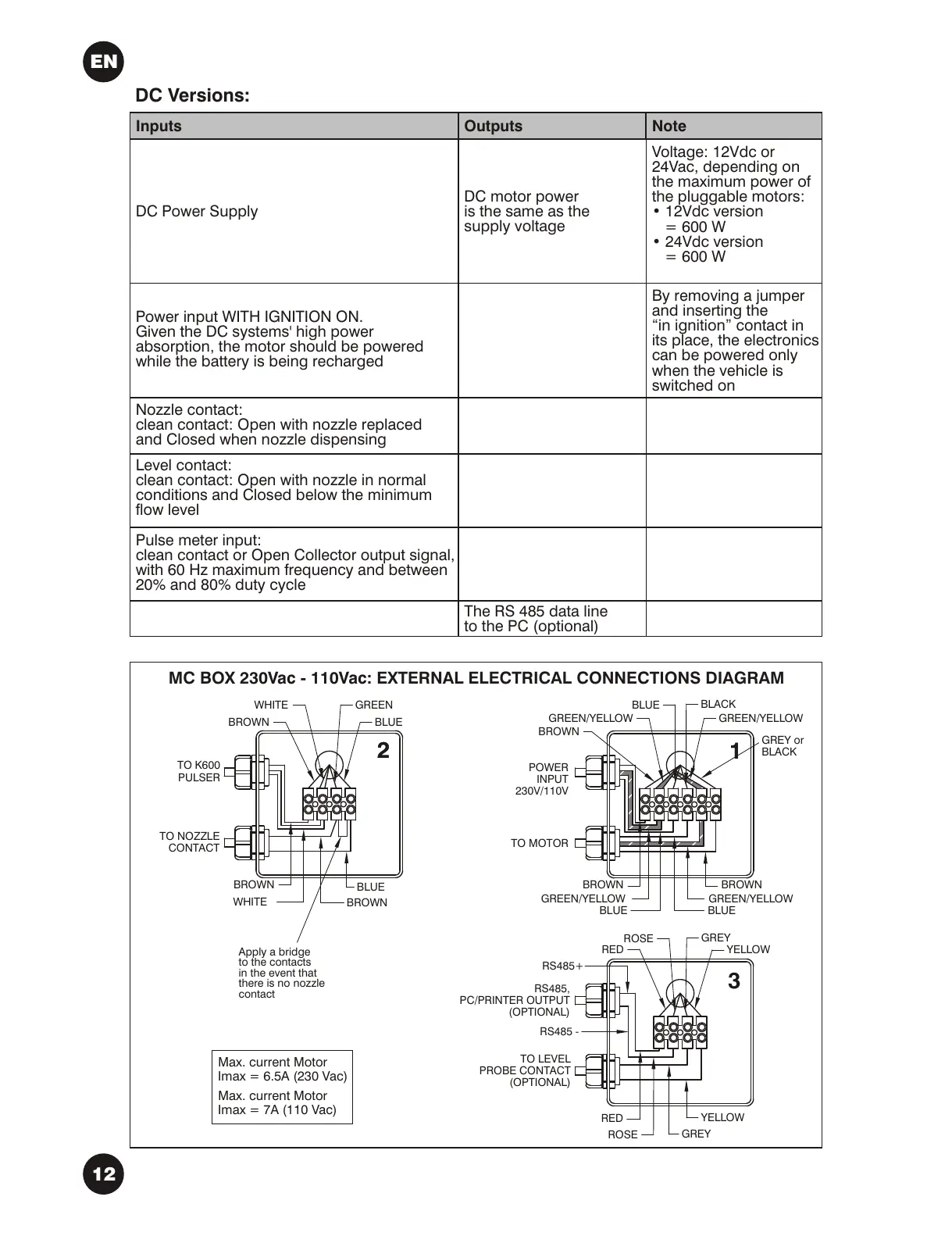

Piusi MC BOX - External Electrical Connections Diagram

DC :Versions
InputsOutputsNote
DC Power Supply
DC motor power
is the same as the
supply voltage
The RS 485 data line
to the PC (optional)
Voltage: 12Vdc or
24Vac, depending on
the maximum power of
the pluggable motors:
• 12Vdc version
= 600 W
• 24Vdc version
= 600 W
By removing a jumper
and inserting the
“in ignition” contact in
its place, the electronics
can be powered only
when the vehicle is
switched on
Power input WITH IGNITION ON.
Given the DC systems' high power
absorption, the motor should be powered
while the battery is being recharged
Nozzle contact:
clean contact: Open with nozzle replaced
and Closed when nozzle dispensing
Level contact:
clean contact: Open with nozzle in normal
conditions and Closed below the minimum
flow level
Pulse meter input:
clean contact or Open Collector output signal,
with 60 Hz maximum frequency and between
20% and 80% duty cycle
12
POWER
INPUT
230V/110V
TO MOTOR
11
BROWN
GREEN/YELLOW
BLUE
GREY or
BLACK
GREEN/YELLOW
BLACK
BROWN
GREEN/YELLOW
BLUEBLUE
GREEN/YELLOW
BROWN
RS485,
PC/PRINTER OUTPUT
(OPTIONAL)
TO LEVEL
PROBE CONTACT
(OPTIONAL)
3
RS485+
RS485 -
RED
ROSE
GREY
YELLOW
RED
ROSE
GREY
YELLOW
Max. current Motor
Imax = 6.5A (230 Vac)
Max. current Motor
Imax = 7A (110 Vac)
MC BOX 230Vac - 110Vac: EXTERNAL ELECTRICAL CONNECTIONS DIAGRAM
TO
PULSER
K600
TO NOZZLE
CONTACT
22
BROWN
WHITE
GREEN
BLUE
BROWN
WHITE
BROWN
BLUE
Apply a bridge
to the contacts
in the event that
there is no nozzle
contact
EN
