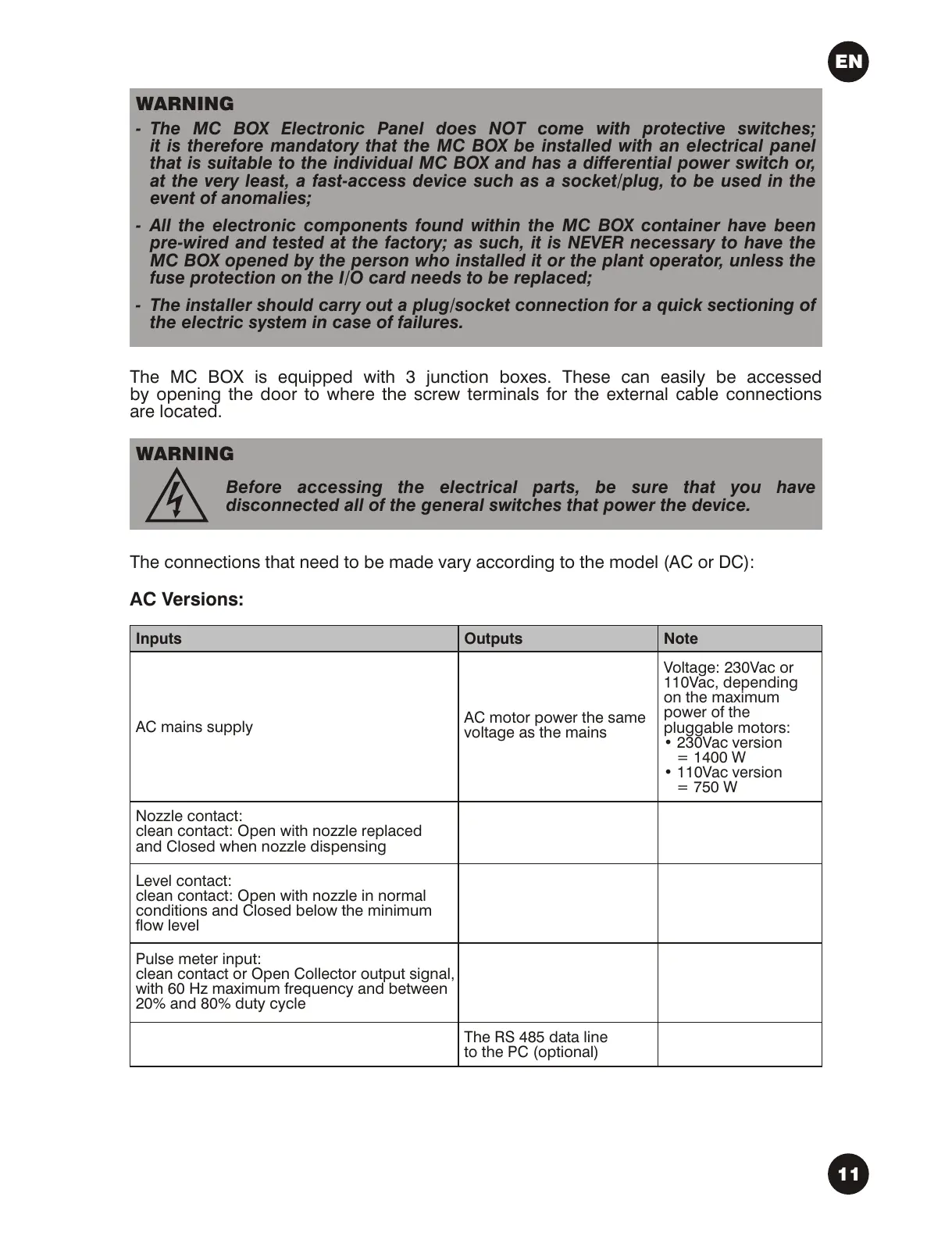

11
-The MC BOX Electronic Panel does NOT come with protective switches;
it is therefore mandatory that the MC BOX be installed with an electrical panel
that is suitable to the individual MC BOX and has a differential power switch or,
at the very least, a fast-access device such as a socket/plug, to be used in the
event of anomalies;
-All the electronic components found within the MC BOX container have been
pre-wired and tested at the factory; as such, it is NEVER necessary to have the
MC BOX opened by the person who installed it or the plant operator, unless the
fuse protection on the I/O card needs to be replaced;
-The installer should carry out a plug/socket connection for a quick sectioning of
the electric system in case of failures.
WARNING
The MC BOX is equipped with 3 junction boxes. These can easily be accessed
by opening the door to where the screw terminals for the external cable connections
are located.
The connections that need to be made vary according to the model (AC or DC):
Before accessing the electrical parts, be sure that you have
disconnected all of the general switches that power the device.
WARNING
AC :Versions
EN
InputsOutputsNote
AC mains supply
AC motor power the same
voltage as the mains
The RS 485 data line
to the PC (optional)
Nozzle contact:
clean contact: Open with nozzle replaced
and Closed when nozzle dispensing
Level contact:
clean contact: Open with nozzle in normal
conditions and Closed below the minimum
flow level
Pulse meter input:
clean contact or Open Collector output signal,
with 60 Hz maximum frequency and between
20% and 80% duty cycle
Voltage: 230Vac or
110Vac, depending
on the maximum
power of the
pluggable motors:
• 230Vac version
= 1400 W
• 110Vac version
= 750 W
