30 M0270 EN
EN
3

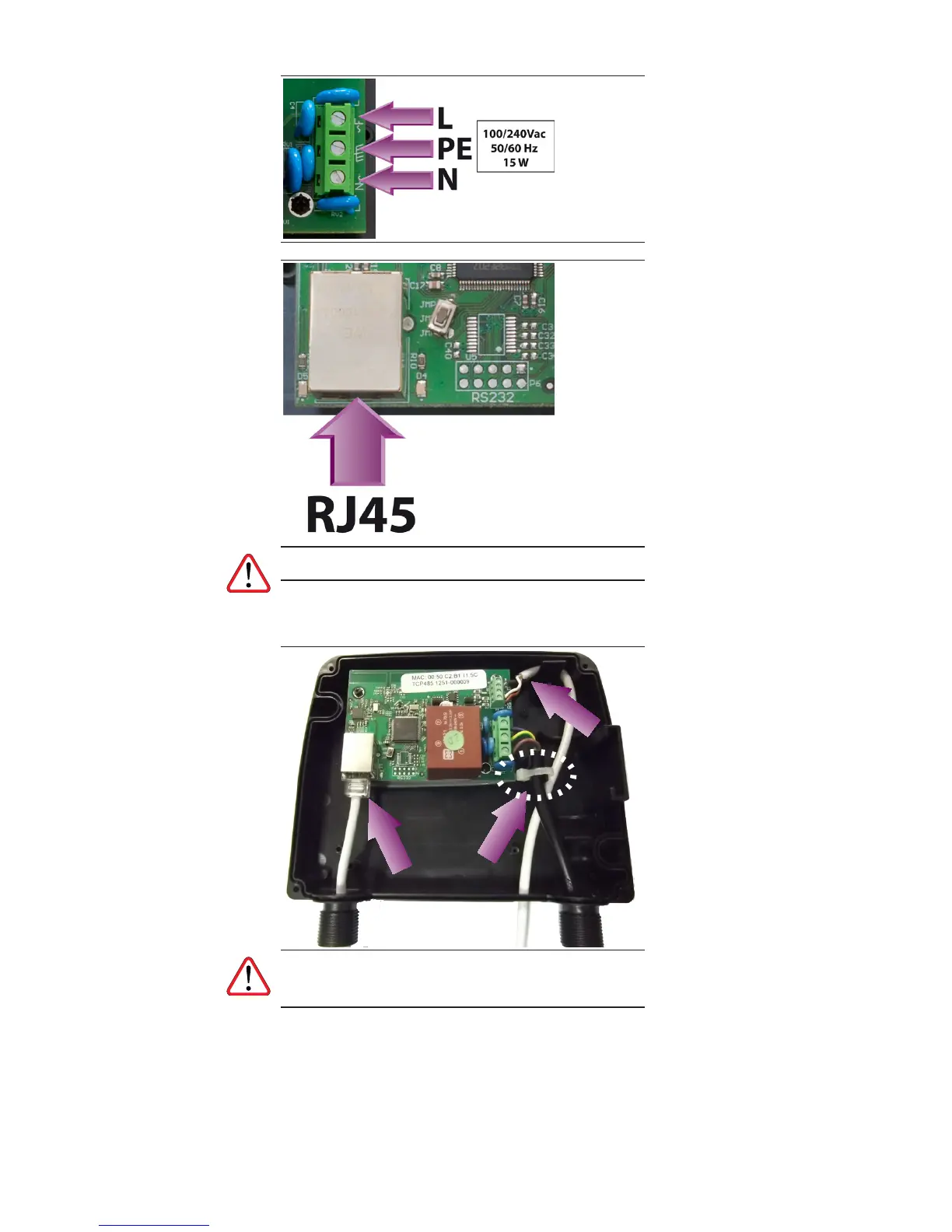

Plug in the Ethernet cable
ATTENTION
RS485 CABLE
Using a certied cable for rs485 you can reach 1200 meters
ETHERNET CABLE
Use a shielded cable, category 5 or higher. The max. distance
that can be reached is 90 metres. The maximum distance is
also aected by the existing network architecture
WIRED PW-LAN
RS485
POWER
ETHERNET
ATTENTION
Fix the power cord with the clip provided so that any separation
of the cable from the terminals does not lead to dangerous vol-
tages other cables connected to the outside.
