Piusi PW-LAN - LED & Connectors; LED Flashing Equivalence

M0270 EN 31
EN

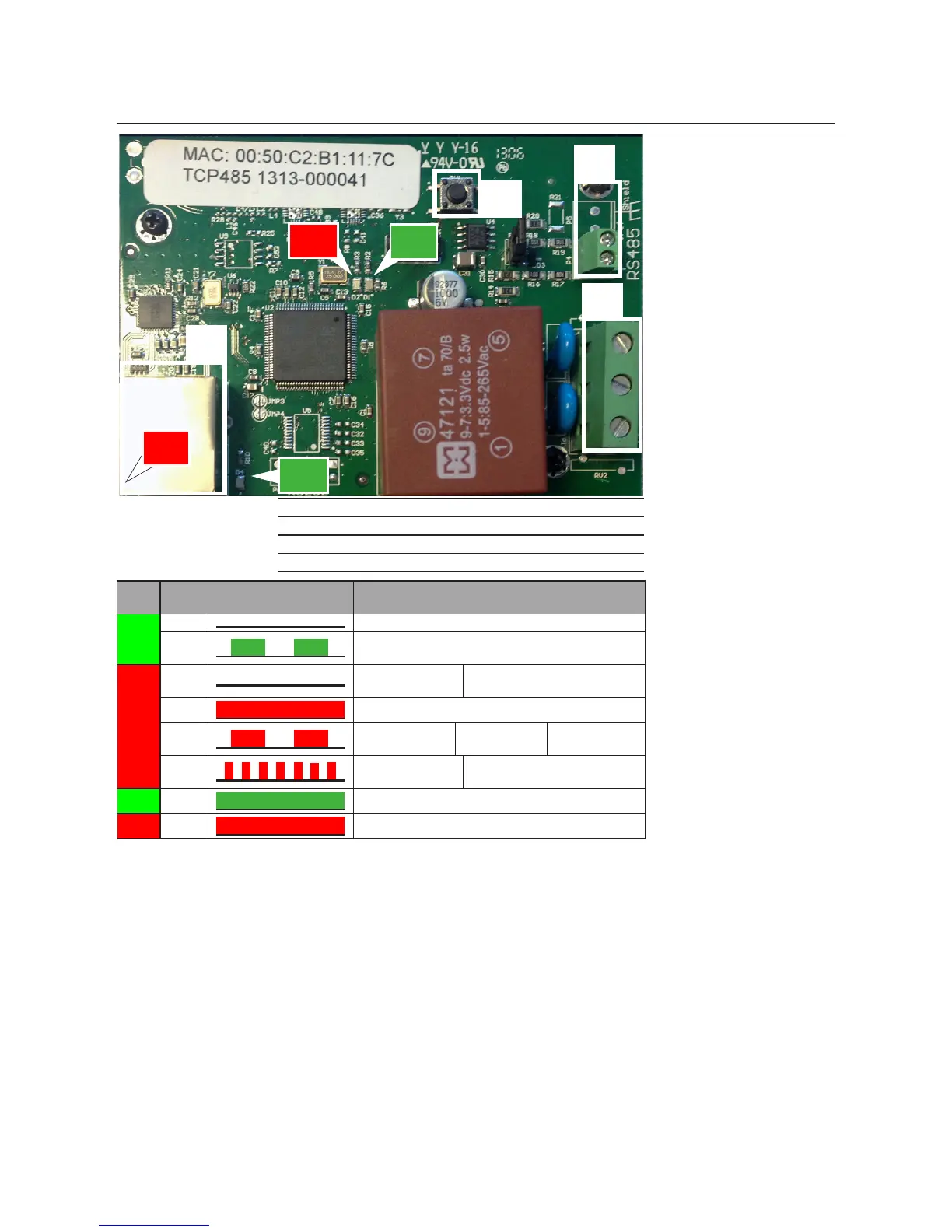

7.3 LED & CONNECTORS
2
3
4
D2
D1
D5
D4
1
1 RESET button to restore factory defaults
2 Ethernet connector
3 RS485 connector
4 Power 100/240Vac 50/60 Hz connector
LED FLASHING EQUIVALENCE
D1
OFF No trac from RS485
SLOW
FLASH
Trac from RS485
D2
OFF DCHP Disabled,
Customized IP (dierent
from 192.168.2.10)
ON DHCP Enabled
SLOW
FLASH
DCHP Enabled,
No IP from
DHCP server
Fallback IP
192.168.2.10
FAST
FLASH
DHCP Disabled Standard IP 192.168.2.10
D4
ON LAN signal
D5
ON Power ON
