FAZUA BASICS

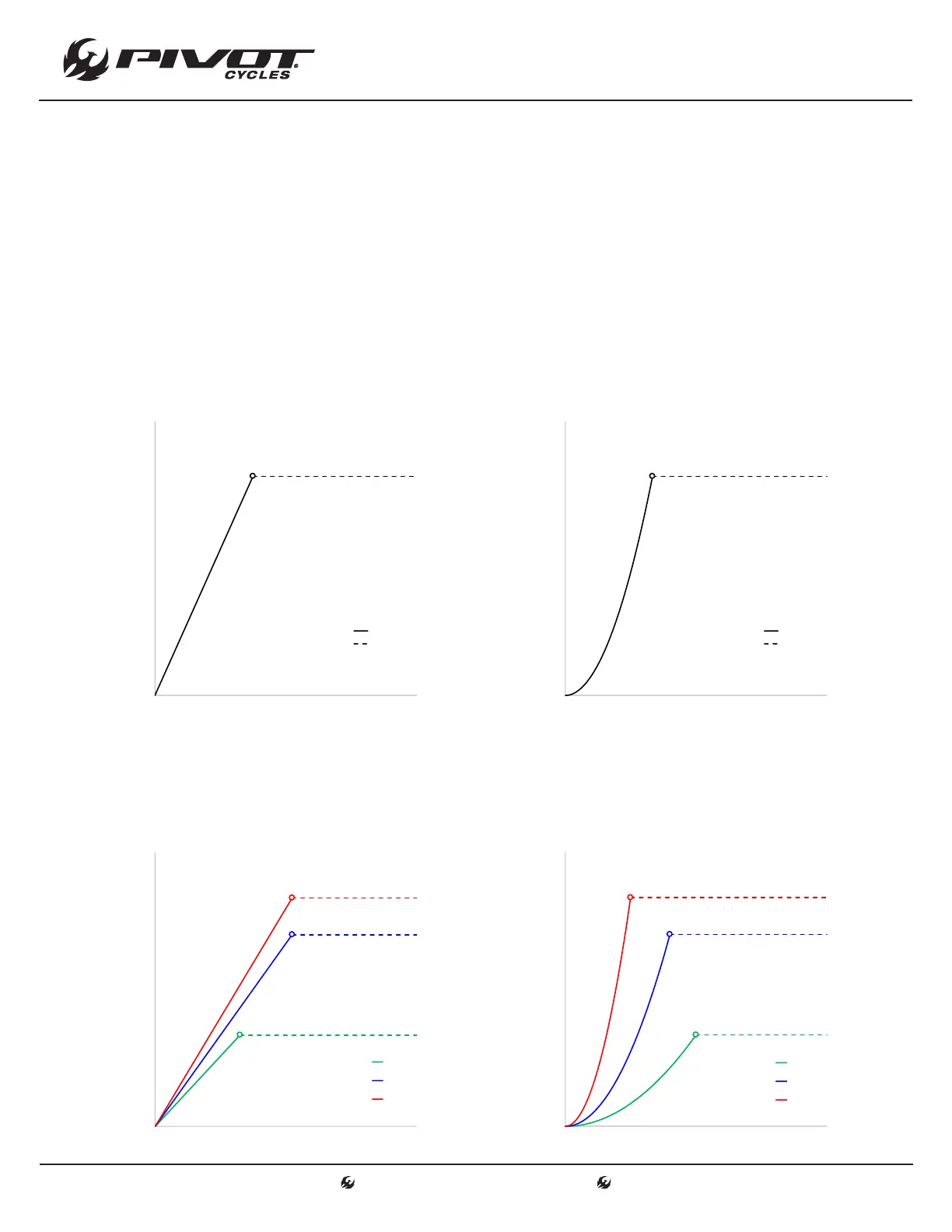

Factory Support Settings
NOTE: There is an individual support curve for each of the three support modes. Below are the default factory
settings. End-user customization is available and outlined in a later section of this manual.
0
50
100
150
200
250
300
0 0.5 1 1.5 2 2.5 3
Mechanical Motor Power (Watts)
Time (Seconds)
Support Characteristics
(Chart 2)
Breeze
River
Rocket
0
50
100
150
200
250
300
0 100 200 300 400
Mechanical Motor Power (Watts)
Rider Power (Watts)
Support Characteristics
(Chart 1)
Breeze
River
Rocket
Support Characteristics
NOTE: The dierences in support modes are measured by the varying values of three parameters.
Max Power: This parameter determines the maximum torque and power output. This parameter is dened
by setting the maximum power output by the motor. This value can vary between 60-300 [W]. This is
illustrated by the height of the dotted line along the y-axis of Chart 1 and Chart 2 below.
Support Relation: This parameter determines the relationship between rider power and motor support. This
parameter is dened by setting at what rider power input the maximum motor power output is reached.
This value can vary between 90-420 [W]. This relationship is illustrated by the slope of the solid "Support
Relation" line in Chart 1 below.
Ramp Up: This parameter determines the reactivity of the motor and the strength of the acceleration. This
parameter is dened by a reactivity percentage indicating how quickly the maximum motor power output
is reached. This value can vary between 0-100 [%]. This is illustrated by the progressiveness of the curved
solid "Ramp Up" line in Chart 2 below.
* These charts are for illustrative purposes only and do not necessarily represent actual support characteristics of E-Vault
0
50
100
150
200
250
0 100 200 300 400
Mechanical Motor Power (Watts)
Rider Power (Watts)
Support Characteristics
(Chart 1)
Support Relation
Max Power
0
50
100
150
200
250
0 0.5 1 1.5 2 2.5 3
Mechanical Motor Power (Watt)
Time (Seconds)
Support Characteristics
(Chart 2)
Ramp Up
Max Power
