FAZUA BASICS
Speed Sensor
NOTE: The speed sensor magnet placement is critical to proper system function. Mount the magnet on a spoke on
the brake side of the wheel and tighten the screw.

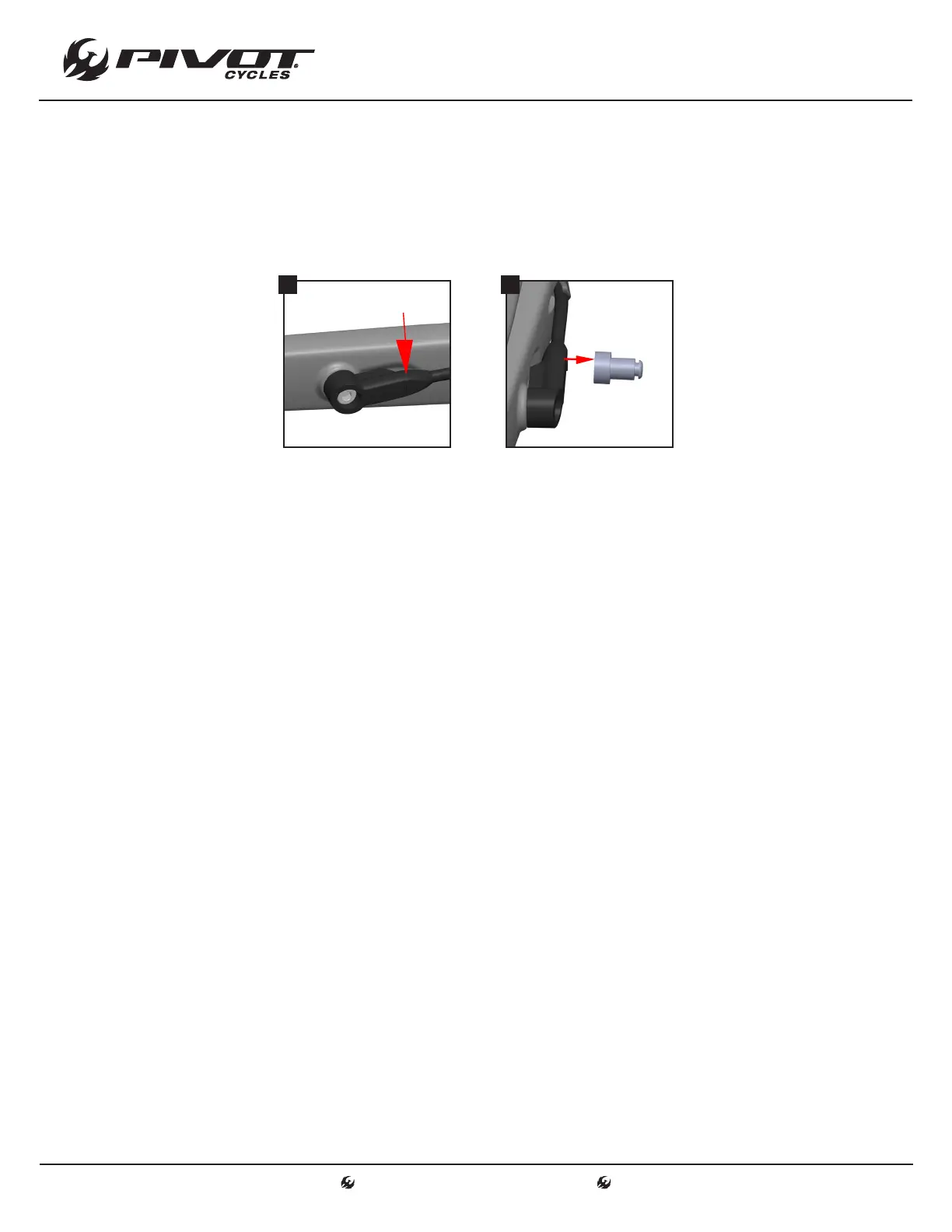

1. Make sure the magnet is in the proper position and distance from the hub. Note the marking on the speed
sensor. There is an embossed line indicating where the magnet should pass in front of the sensor.
2. In order for the speed sensor to function properly, the distance between the magnet and speed sensor
must be between 4mm and 17mm.
1 2
