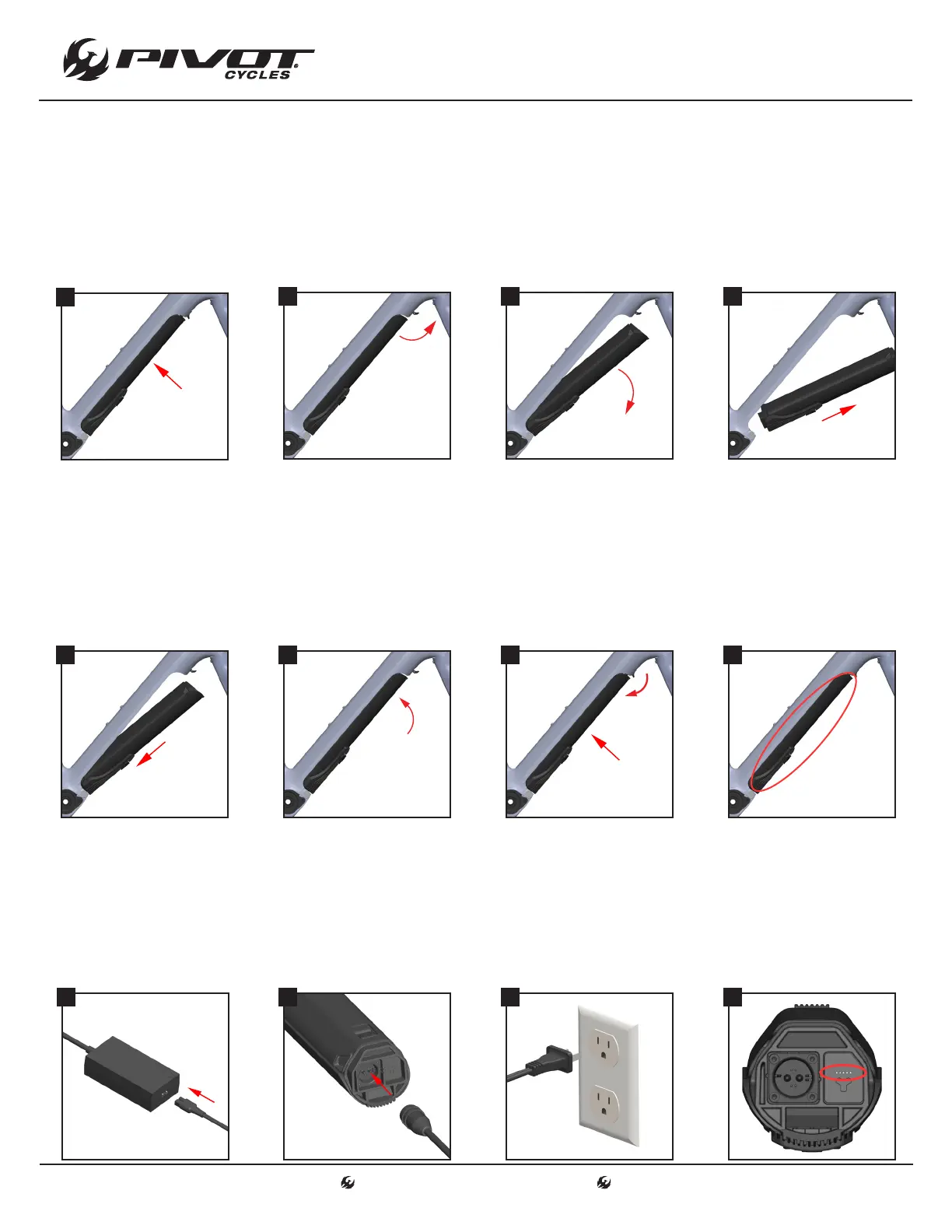

Removing the Drivepack
NOTE: The battery does not come fully charged and must be completely charged before the rst use. The drivepack
must be removed in order to charge the battery.
1. Secure the drivepack with one hand. Gently press the the drive pack upward into the downtube to release
some pressure o the locking mechanism.
2. Locate the drivepack release lever. Flip the lever down and rotate it as far forward to release the drivepack.
3. Carefully tilt the front of the drivepack down to lower it out of its holder in the downtube.
4. Remove the drivepack from the interface on the bottom bracket gear box.
1
2 3 4
Charging the Battery
NOTE: The battery does not come fully charged and must be completely charged before the rst use. In order to
charge the battery, the drivepack must be removed from the frame (see removal instructions above).
1. Prepare the charger by plugging the power cable into the power inverter.
2. Insert the power plug into the charging socket on the battery.
3. Plug the power cable into the mains.
4. To ensure a full charge, wait until the ve LEDs on the battery are lit.
1 2 3 4
Installing the Drivepack
1. Place the drivepack into the downtube with the driving interface of the drivepack aligned with the
corresponding interface on the bottom bracket gear box.
2. Rotate the upper end of the drivepack into the downtube.
3. Firmly press the drivepack into place. When the drivepack is correctly installed, the locking mechanism will
automatically engage with an audible click and the release lever will return to the closed position.
4. Check the drivepack to conrm that it makes a tight t. If the drivepack does not lock in place, pull it back
out and try again. Do not ride the bike with the drivepack improperly installed.
321 4
