User manual - ATR224 - DRR224 - 17
To download the new configuration on your device, select the third tab “WRITE” , place again the
smartphone in contact with the controller and wait for the notification.
The devices will show a restart request, necessary to update the configuration with the new written
modifications; if it does not restart, the controller will continue to work with the previous configuration.
In addition to the classic operation of parameters reading->modification->writing, MyPixsys is
provided with additional functions which can be accessed by the tab
“EXTRA” , as save parameters /
e-mail loaded values/ restore default values.
8.1 Configuration through memory card
The device can be configured through a memory card (2100.30.013). This one is linked to the micro-USB
connector on the bottom of the device.
8.2 Memory card creation/update
A1C2
C1
A2 A3 TUN MAN REM
In order to save a parameter configuration in the memory card, connect it to
micro-USB connector and power the instrument. If the memory has never
been configured, the device starts normally, but if its data are considered
valid, it is possible to view on the display
memo skip . Press SET in order to start
the product without uploading any data from the memory card. Configure,
set the parameters and exit configuration. №w, the device saves the
configuration just created also in the memory.
8.3 Configuration loading from memory card
A1C2
C1
A2 A3 TUN MAN REM

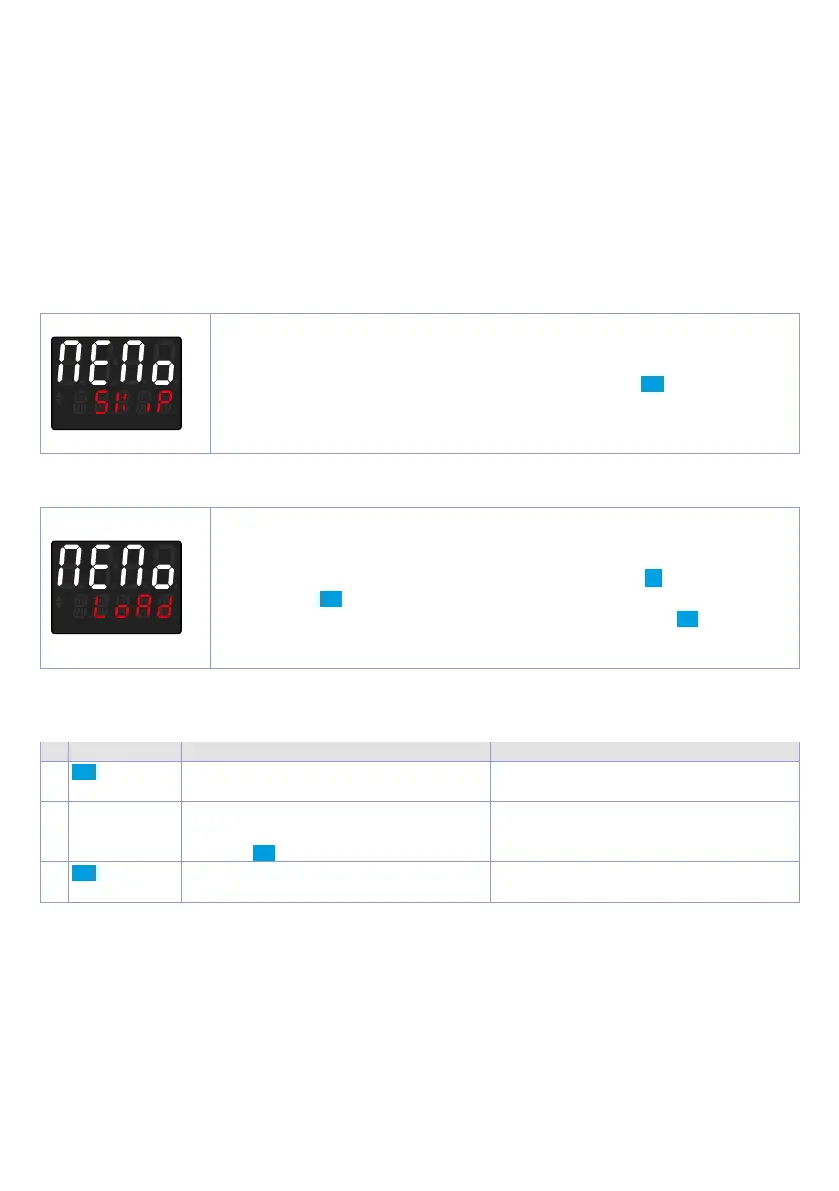

In order to charge a configuration previously created and saved in the
memory card, connect it to the micro-USB connector and power the
instrument. №w, if the memory is detected and its data are considered valid,
it is possible to view on the display
memo skip . By pressing

you see Memo
Load and with SET you confirm the uploading of parameters from the memory
card to the controller. If, on the other hand, you press directly SET, when
viewing
Memo skip , the product starts without uploading any data from the
memory card.
9 Loading default values
This procedure allows to restore factory settings of the device.
Press Display Do
1
FNC
for 3 sec
Display 1 shows PASS,, while display 2
shows
0000 with the 1st digit flashing.
2
c
or
d
Modify the flashing digit
and move to the next one
pressing SET.
Enter password
9999.
3
FNC
to confirm
The device loads default
settings and restarts.
