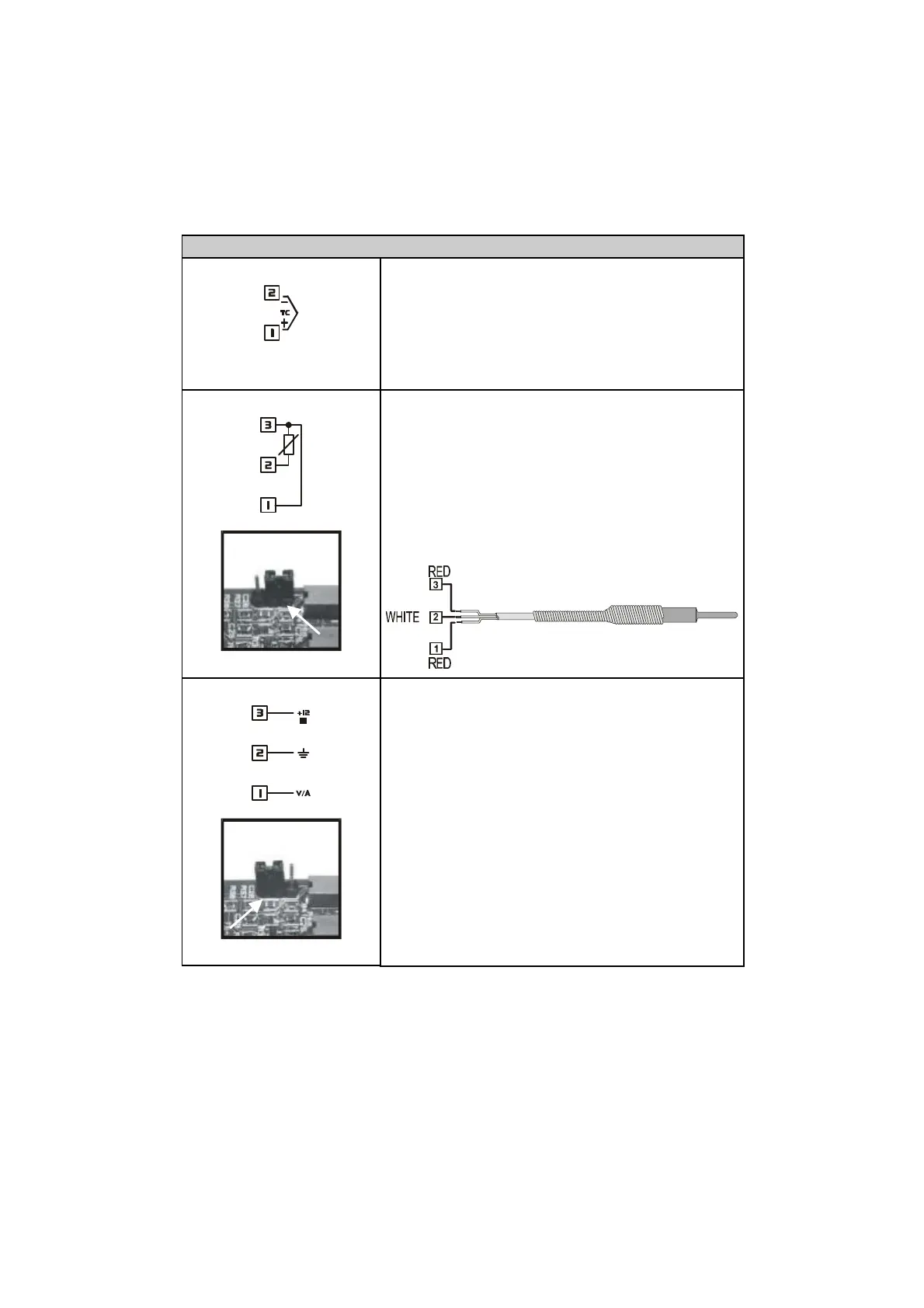

Analog input
1. Thermocouples K, S, R, J
• Respect polarities
• For eventual extensions, use the
compensating cable and terminals
suitable for the used thermocouple
2. RTD type PT100, NI100
• For a three-wire wiring use cables with
the same diameter
• For a two-wire wiring short-circuit pins
1 and 3
• Selection by internal jumper JP3 as in
the picture beside
3. For normalized signals V, mA, mV
• Respect polarities
• Selection by internal jumper JP3 as in
the picture beside. Otherwise 12Vdc
will not be available on pin no. 3 for
supply of sensor.
