Z-Meter DX4091/ User Guide PL Engineering Ltd
ver. 1.02 (2022) page 21 of 44

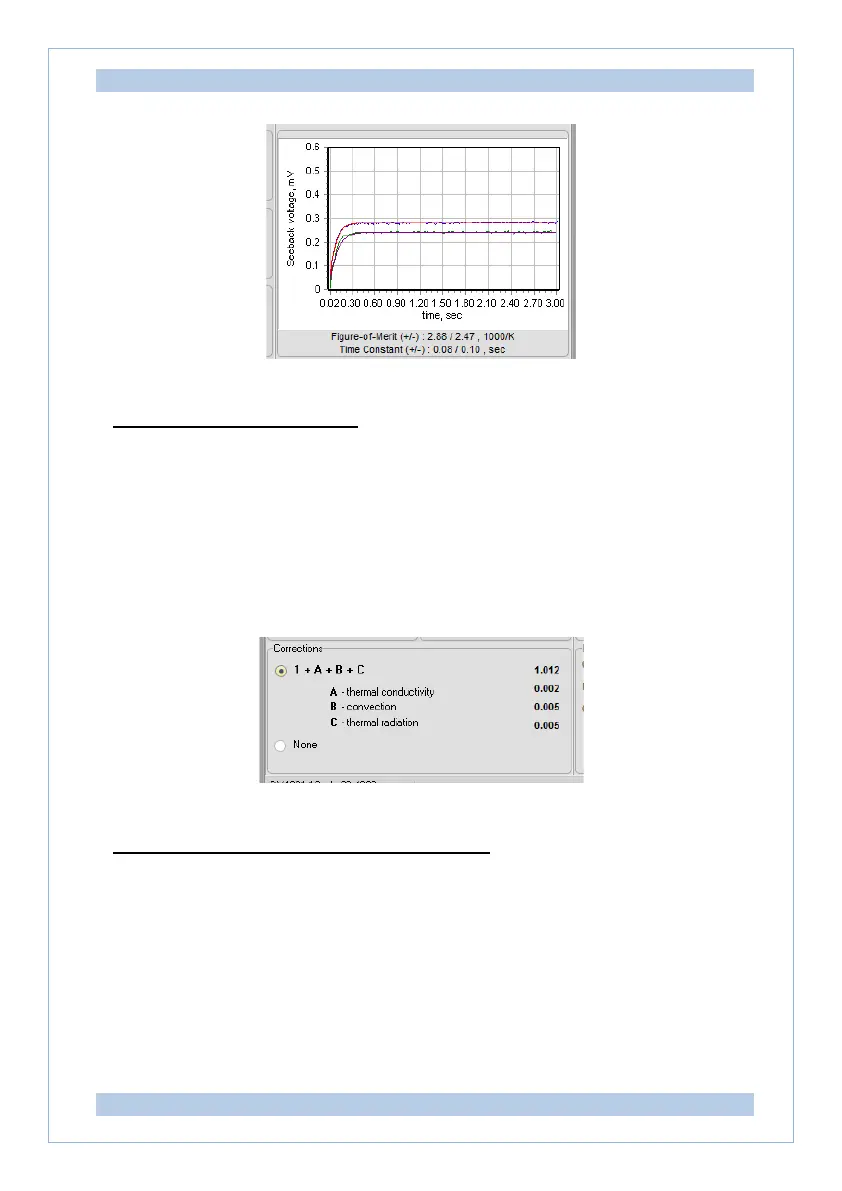

Area of correction factors
The lower left of Main Window is an important section of
measurement processing. These are measurement corrections for
measurements because of:
- thermal conductivity of contact wires,
- convection heat exchange
- thermal radiation heat exchange.
Parameters of Measurement Cycle Area
The right lower part of Main Window contains the button for
measurement start («Measure»), the button for store («Add to
History») of modified/corrected results in current measurement
protocol.
As well as available for adjustments - values of measurement time
and measuring electric current.
