Operating the Display
Planar Simplicity M Series User Manual
020-1409-00A
Page | 41

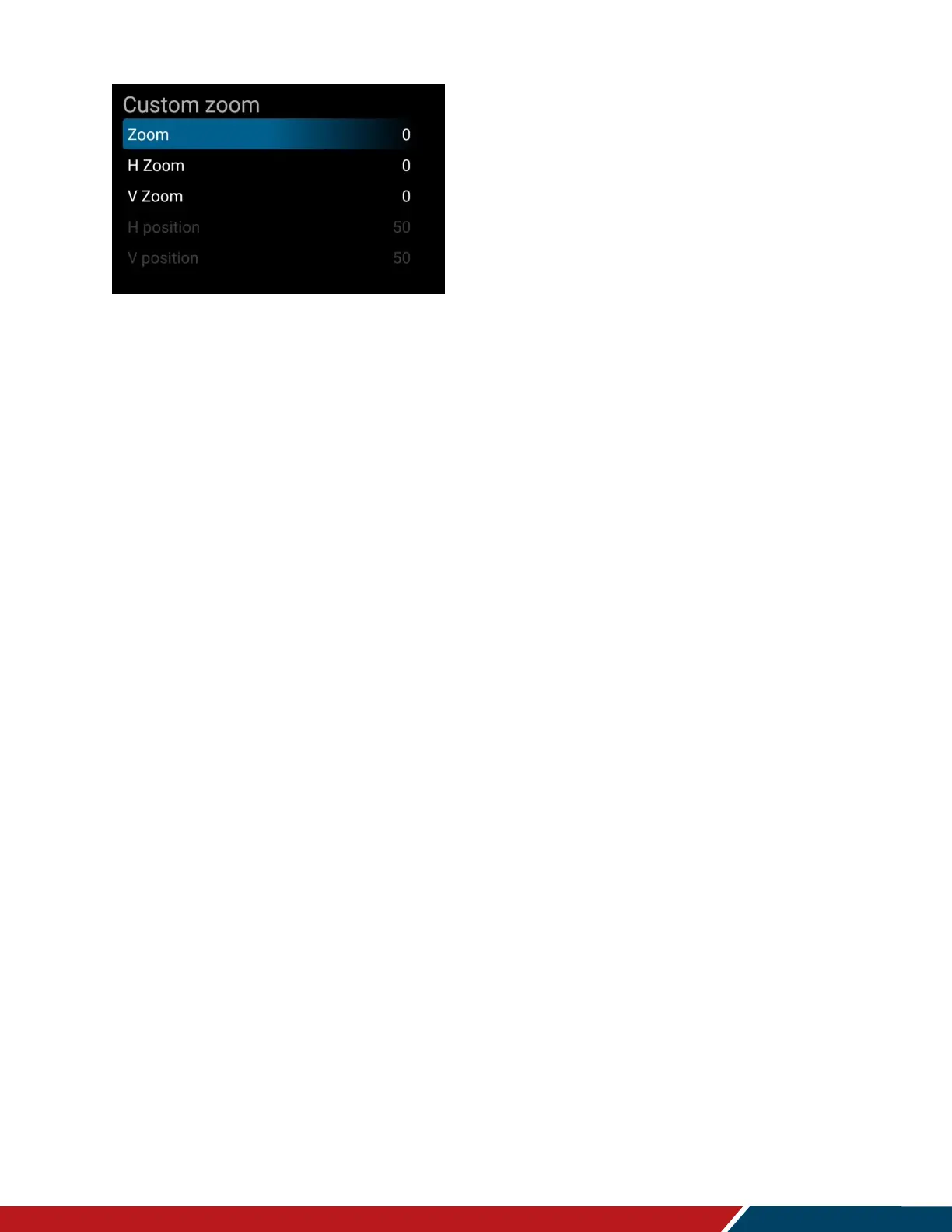

Custom Zoom
 Zoom
o Adjust the zoom (overscan) of the image. Available when Aspect Ratio is set to
Custom. Press  or  to select the desired level.
o Range: 0~100
o Default: 0
 H Zoom
o Adjust the zoom (overscan) of the image in the horizontal direction only.
Available when Aspect Ratio is set to Custom. Press  or  to select the
desired level.
o Range: 0~100
o Default: 0
 V Zoom
o Adjust the zoom (overscan) of the image in the vertical direction only. Available
when Aspect Ratio is set to Custom. Press  or  to select the desired level.
o Range: 0~100
o Default: 0
 H Position
o Adjust the horizontal position of the image (VGA source only). Available when
Aspect Ratio is set to Custom. Press  or  to select the desired level.
o Range: 0~100
o Default: 50
 V Position
o Adjust the vertical position of the image (VGA source only). Available when
Aspect Ratio is set to Custom. Press  or  to select the desired level.
o Range: 0~100
o Default: 50
Auto Adjust
 Force the display to reacquire and lock to the input signal (VGA source only). This is
useful when the signal quality is marginal.
 Note: This feature does not continually reacquire the signal.
Screen Reset
 Reset all settings in the Screen menu to their default values.
