Planar M Series - Screen Settings

Operating the Display
Planar Simplicity M Series User Manual
020-1409-00A
Page | 40

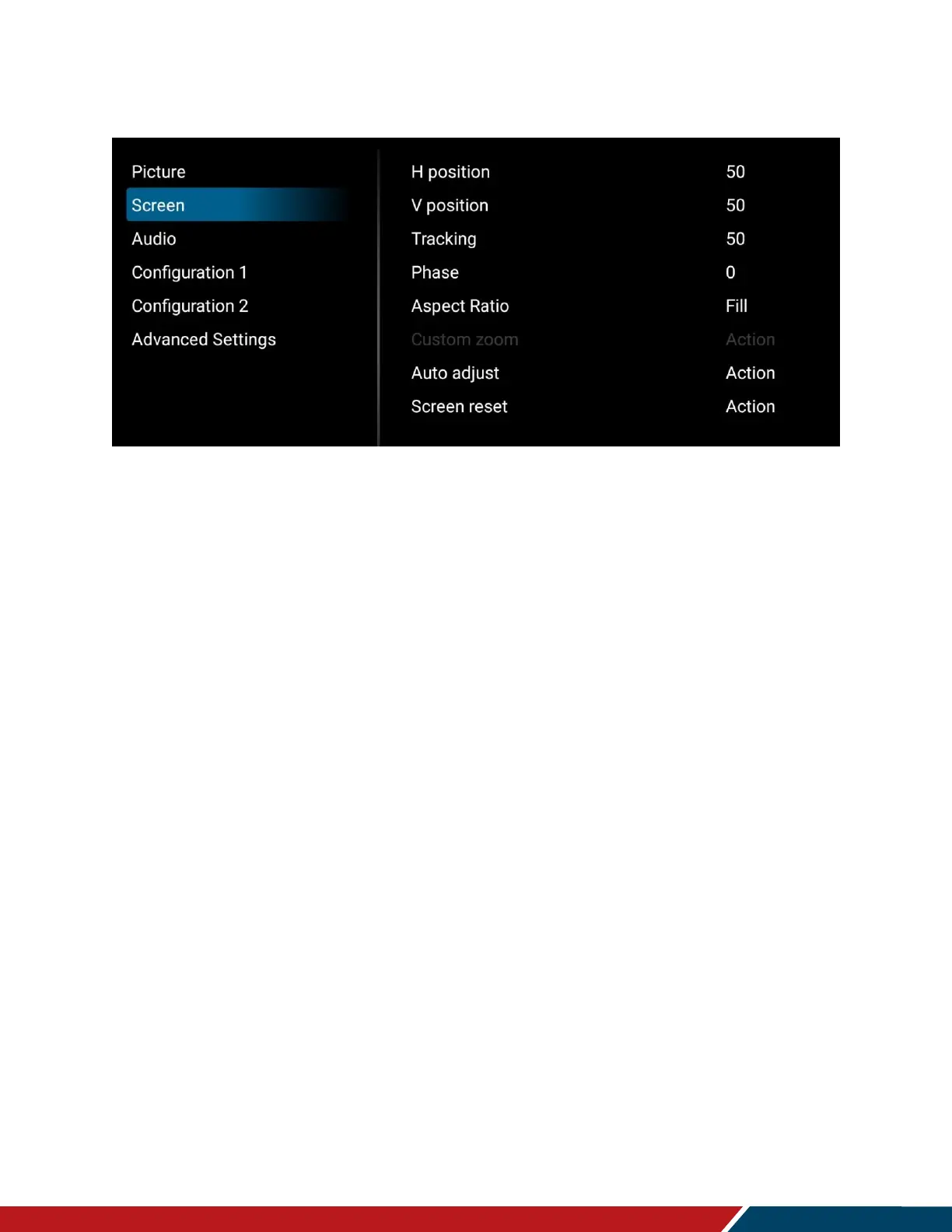

18.2 Screen
H Position
 Adjust the horizontal position of the image (VGA source only). Press  or  to select
the desired level.
 Range: 0~100
 Default: 50
V Position
 Adjust the vertical position of the image (VGA source only). Press  or  to select the
desired level.
 Range: 0~100
 Default: 50
Tracking
 Adjust the clock of the displayed signal (VGA source only). Press  or  to select the
desired level.
 Range: 0~100
 Default: 50
Phase
 Adjust the phase of the displayed signal (VGA source only). Press  or  to select the
desired level.
 Range: 0~100
 Default: 50
Aspect Ratio
 Adjust the aspect ratio of the screen.
 Options: Fill, 4:3, Native, 21:9, Custom
 Default: Fill
