Electrical Connections
3

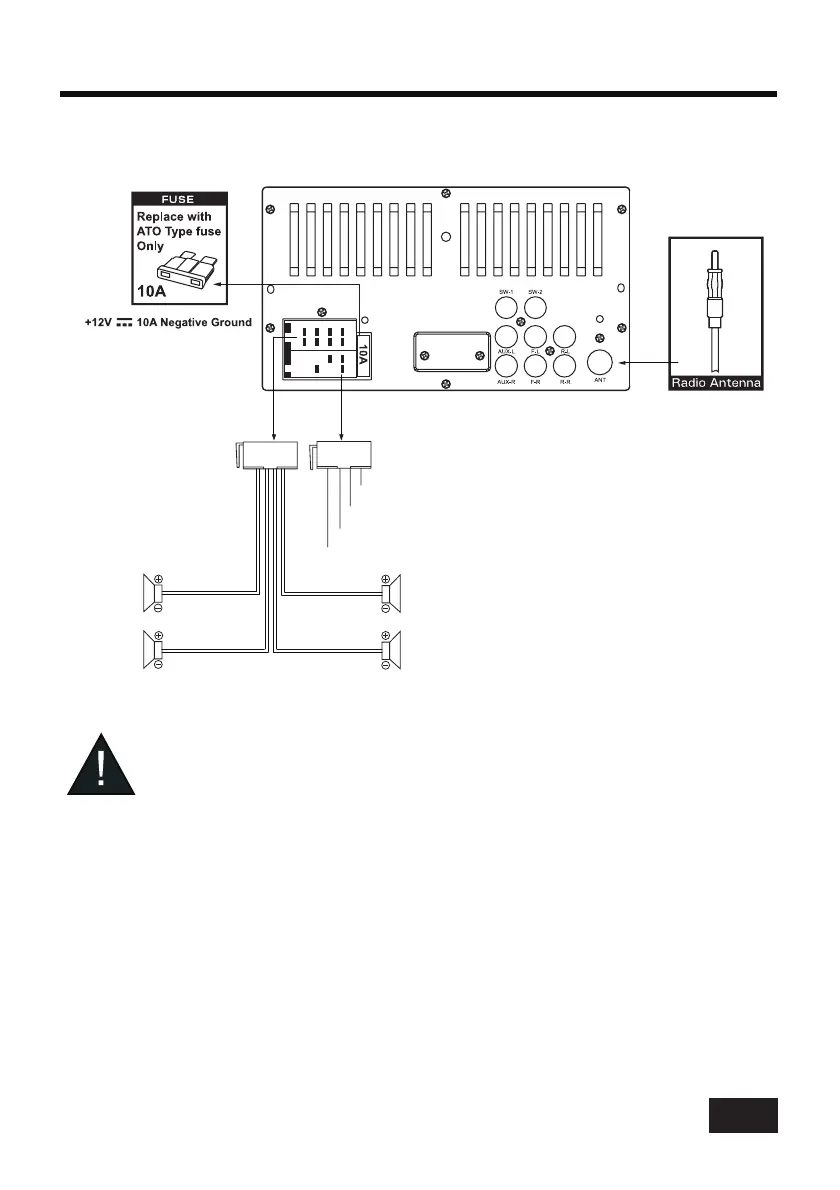

WIRING DIAGRAM
SW-1: Subwoofer Output 1 (green)
SW-2: Subwoofer Output 2 (green)
AUX-L: AUX Input-Left (White)
AUX-R: AUX Input-Right (Red)
F-L: Front Left PRE-AMP Output (White)
F-R: Front Right PRE-AMP Output (Red)
R-L: Rear Left PRE-AMP Output (White)
R-R: Rear Right PRE-AMP Output (Red)
White
Front Left
Speaker
Rear Left
Speaker
Front Right
Speaker
Rear Right
Speaker
White/Black
ACC + (Red)
GND - (Black)
ANT + (Blue)
Power B+ (Yellow)
Gray/Black
Purple
Purple/Black
Green
Green/Black
Gray
- Only use speakers with 4 ohm impedance.
- The maximum current of the Amp Remote trigger is 200mA.
- The equipment shall be protected by the circuit with max. 10 Amperes
of the front end of DC source.
