PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL 180R © 2023 PLANET ECLIPSE LTD

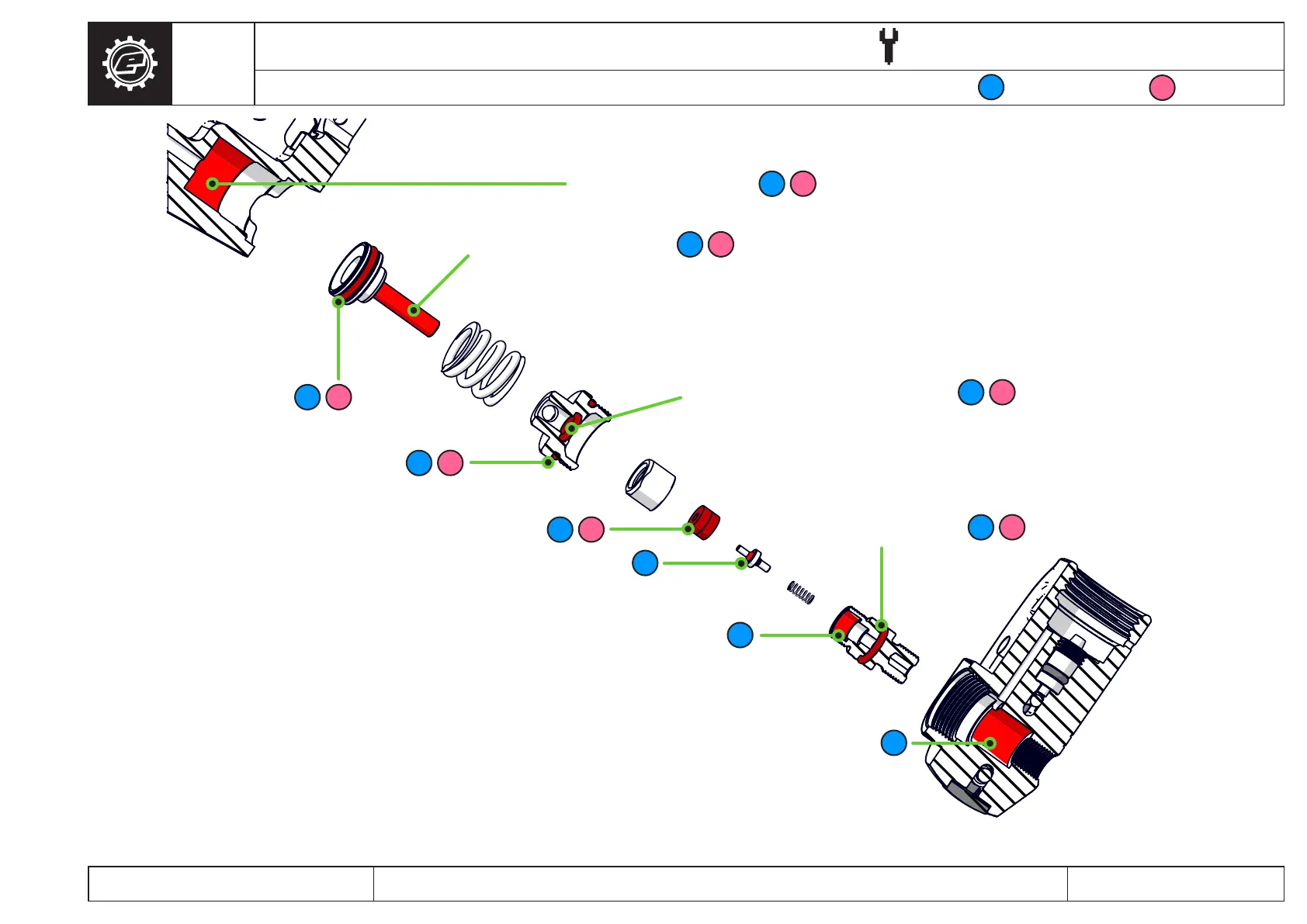

SERVICE INDICATOR - SERVICE REQUIRED PART 2/2
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = CLEAN & INSPECT (R) = LUBRICATE
L
I
015NBR70 O-RING
FRAME (INSIDE FACE)
PISTON (OUTSIDE FACE)
014 NBR70 O-RING
008 NBR70 O-RING (INTERNAL)
REGULATOR SEAL
PURGE POPPET (OUTSIDE FACE)
POPS BODY (INSIDE FACE)
REGULATOR ADJUSTER (INSIDE FACE)
011 NBR70 O-RING
L
L
L
L
L
L
L
I
I
I
I
I
I
I
I
I
I
