PLANET ECLIPSE 180R.68CAL - Solenoid Leak

23
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL 180R © 2023 PLANET ECLIPSE LTD
(C) = COMMON FAULT (R) = RARE FAULT

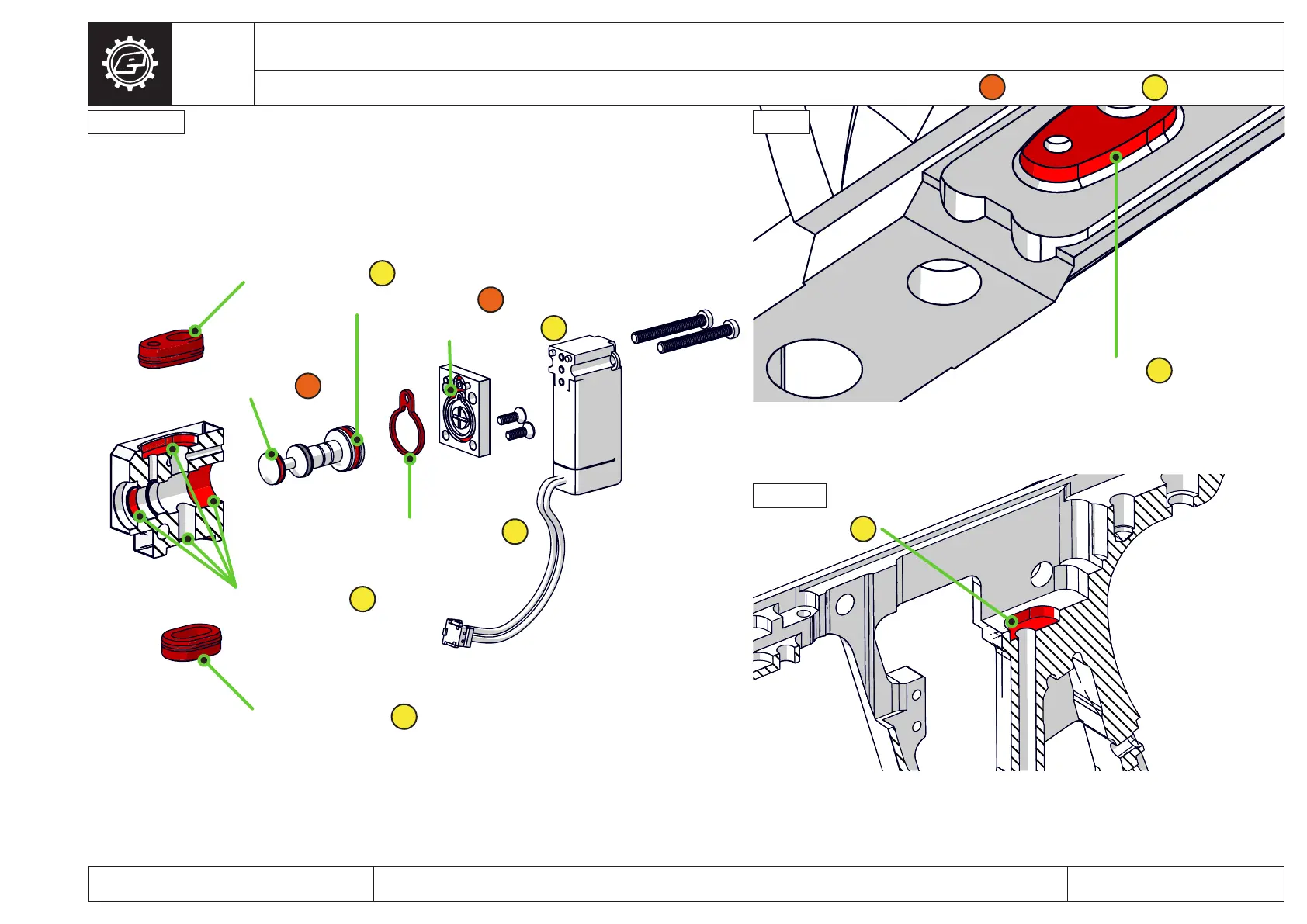

SOLENOID LEAK
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
BODY GASKET (R)
180R BODY (R)
FRAME (R)
FRAME GASKET (R)
6 X 1 NBR70 O-RING (C)
SOLENOID PLATE (R)
SOLENOID PLATE GASKET (R)
3-WAY BODY (R)
#6 SOLENOID SEAL (C)
SOLENOID BODY
FRAME
R
R
R
R
R
R
R
R
C
C
C
