PLANET ECLIPSE 180R.68CAL - 21 Puffs When Trigger Is Pulled

21
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL 180R © 2023 PLANET ECLIPSE LTD
(C) = COMMON FAULT (R) = RARE FAULT
‘PUFFS’ WHEN TRIGGER IS PULLED

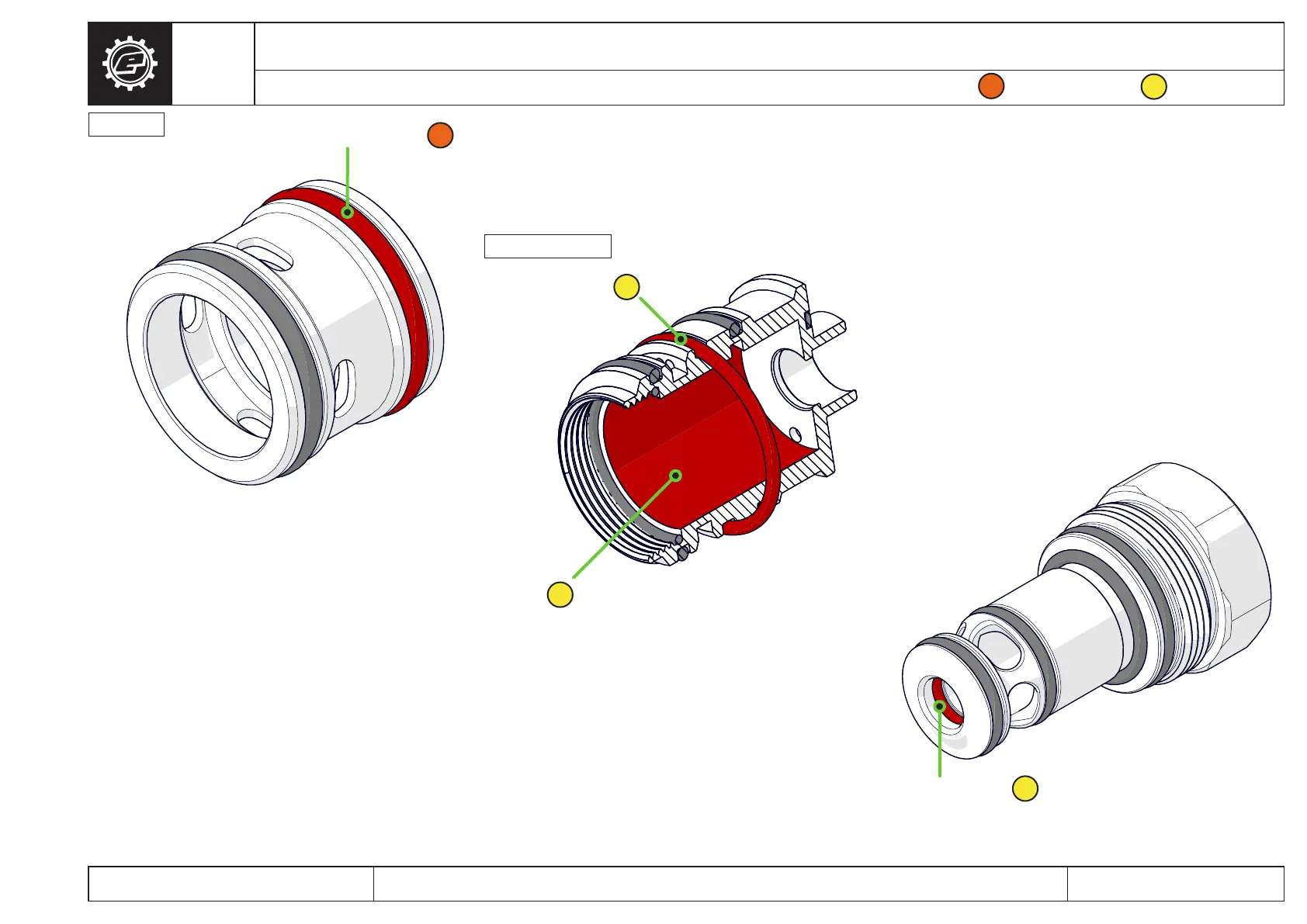

CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
016 NBR70 O-RING (C)
VALVE BODY (INSIDE FACE)(R)
021 NBR70 O-RING (R)
6X1.5 NBR70 O-RING (R)
(IF THIS O-RING IS DAMAGED, INCORRECTLY SIZED OR NOT
LUBRICATED CORRECTLY THEN THE MARKER MAY EXHIBIT
CONSTANT LOW VELOCITY)
SWITCH
SWITCH BODY
R
R
R
R
C
C
