PLANET ECLIPSE 180R.68CAL - Inline Regulator; Pops Leak

25
PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL 180R © 2023 PLANET ECLIPSE LTD
INLINE REGULATOR / POPS LEAK

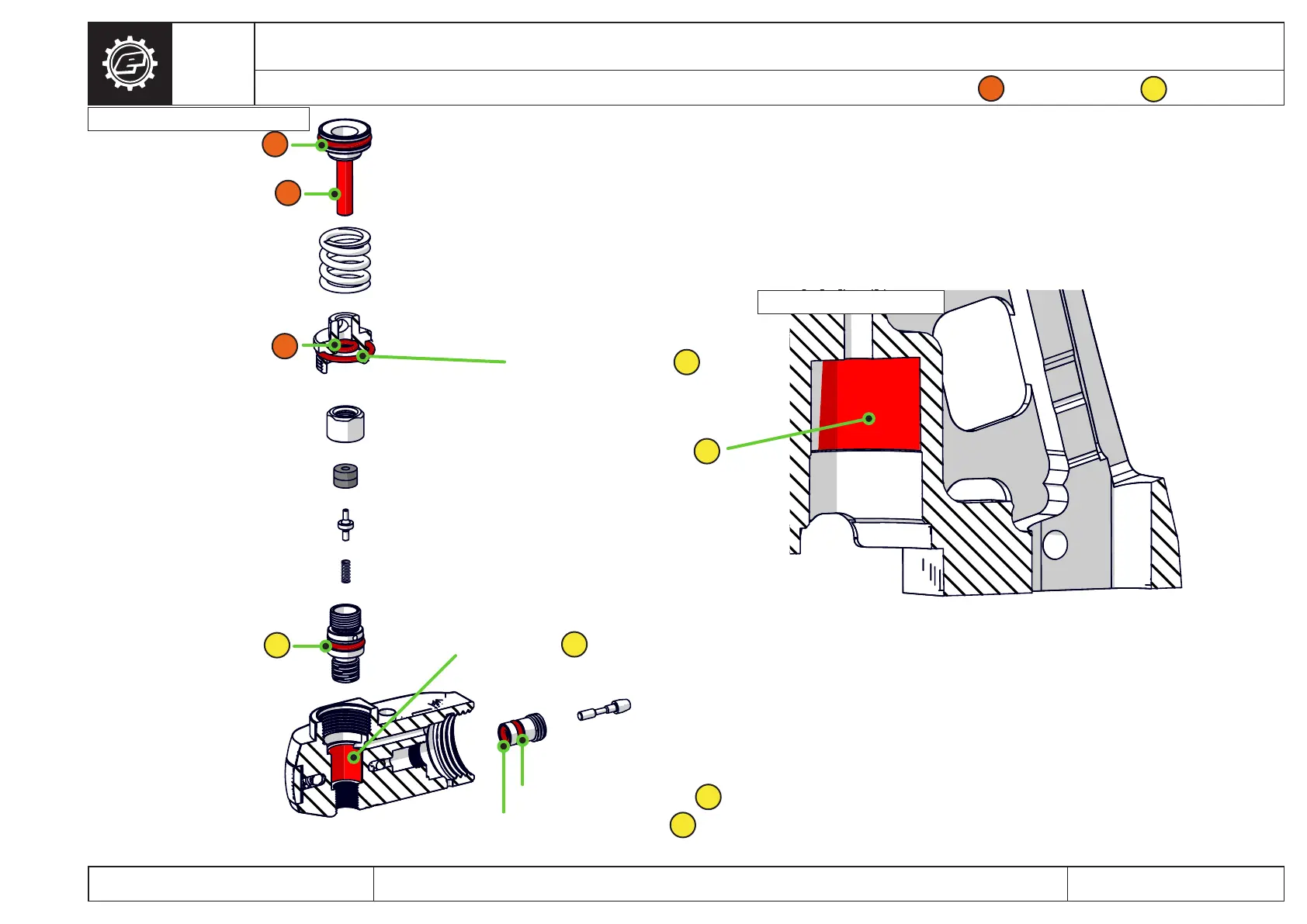

CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
(C) = COMMON FAULT (R) = RARE FAULT
014 NBR70 O-RING (C)
REGULATOR PISTON (C)
008 NBR70 O-RING (C)
FRAME (INSIDE FACE) (R)
011 NBR70 O-RING (R)
POPS BODY (R)
015 NBR70 O-RING (R)
007 NBR70 O-RING (R)
005 NBR90 O-RING (R)
R
R
R
R
R
R
R
C
C
C
C
REGULATOR ASSEMBLY
FRAME (INTENRAL)
