PLANET ECLIPSE OFFICIAL WORKSHOP MANUAL 180R © 2023 PLANET ECLIPSE LTD
(C) = COMMON FAULT (R) = RARE FAULT

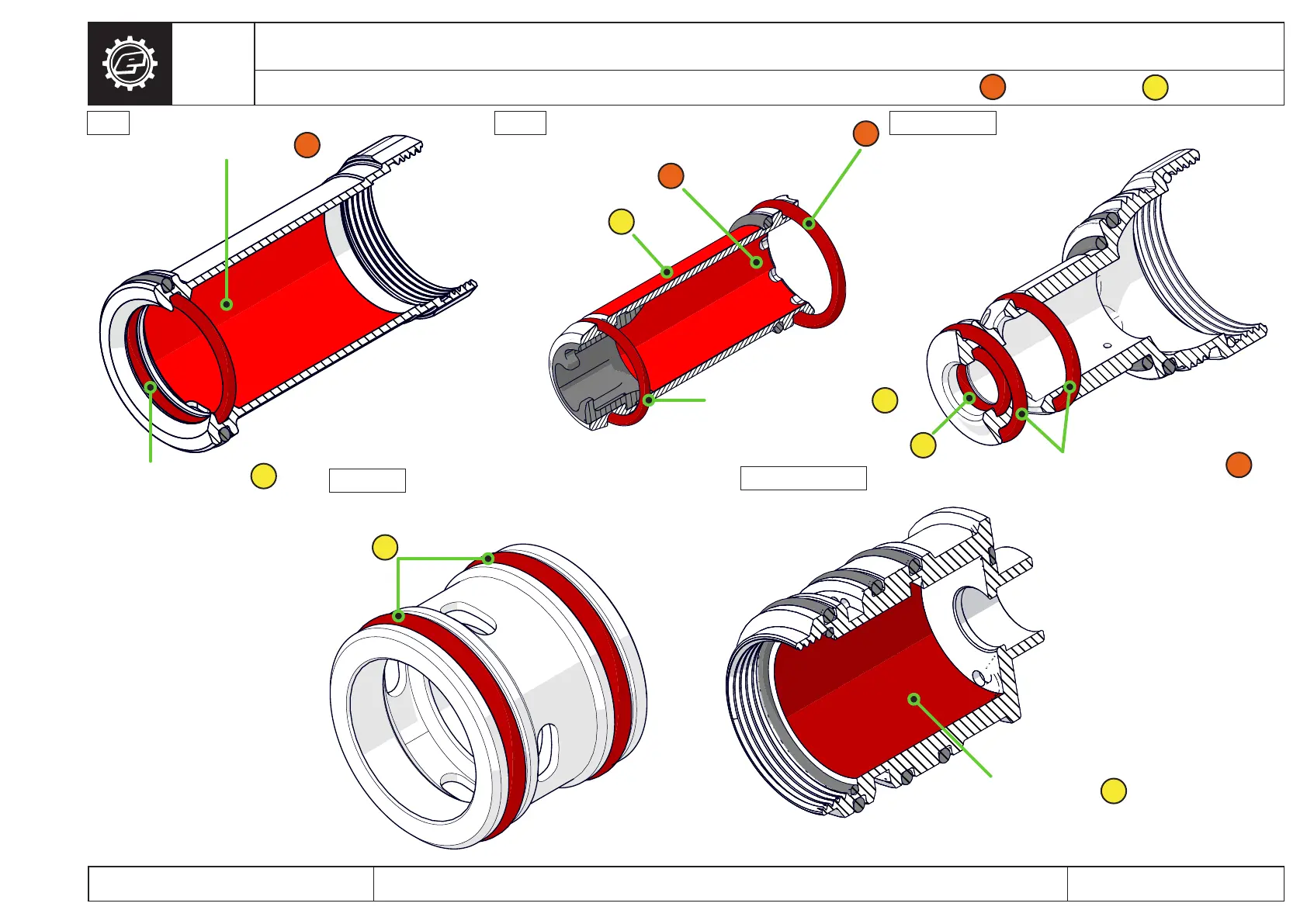

FIRST SHOT DROP OFF (FSDO)
CLEAN AND LUBRICATE / CHANGE HIGHLIGHTED SEALS AND FACES
CAN (INSIDE FACE) (C)
BOLT (OUTSIDE FACE) (R)
BOLT (INSIDE FACE) (C)
017 NBR70 O-RING (R)
013 NBR70 O-RING (R)
6 X 1.5 NBR70 O-RING (R)
016 NBR70 O-RING (R)
INSIDE FACE (R)
14X2 NBR70 O-RING (C)
013 NBR70 O-RING (C)
CAN BOLT BOLT GUIDE
SWITCH
SWITCH BODY
R
R
R
R
R
R
R
C
C
C
C
C
