PLANET ECLIPSE ETHA3 - Technical: Inline Regulator; Technical: Solenoid Assembly

Etha3 etha3
26 27
SUB TITLE SOLENOID ASSEMBLY
Etha3 etha3
26 27

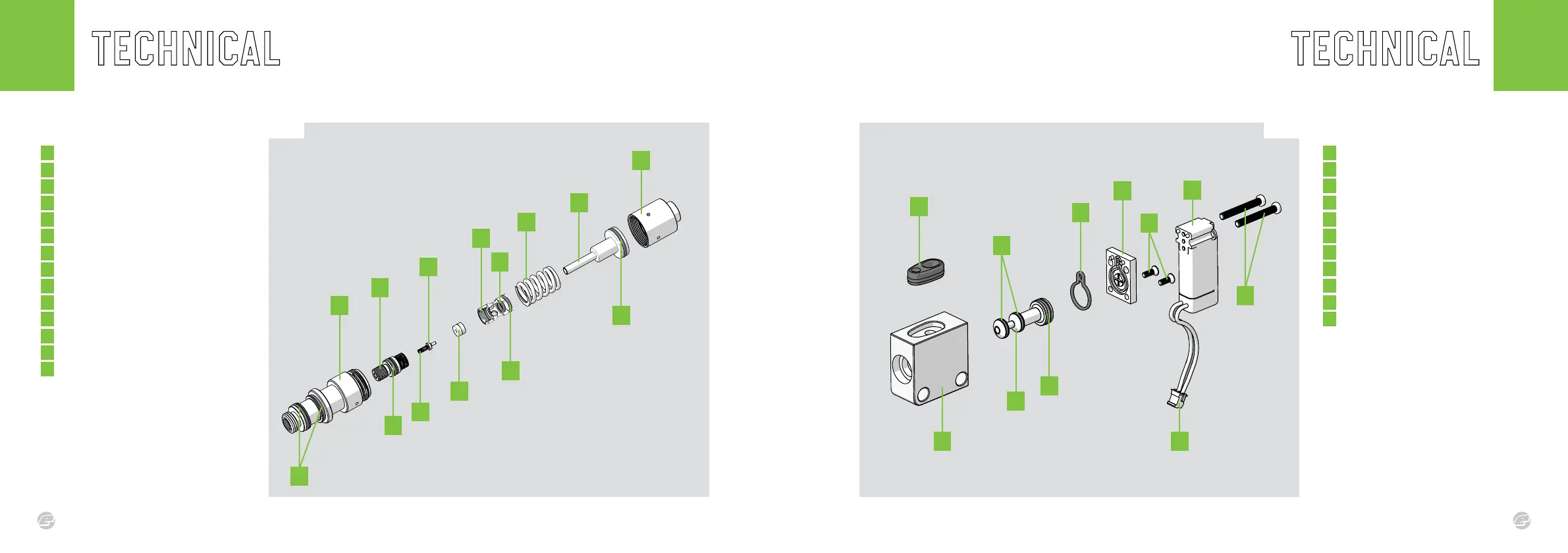

INLINE REGULATOR FL 3-WAY VALVE
FIG.1
A Solenoid Body Gasket
B Solenoid Body
C #6 seal - Custom
D Solenoid Spool
E 6 x 1 NBR70
F Solenoid Gasket
G Solenoid Plate
H M1.6 x 5 Machine Screws
I Solenoid Pilot
J Solenoid Plug
K M2 x 16 Cross Pan head Screws
FIG.1
A Regulator Body
B #015 NBR70 O-Rings
C Adjuster Bottom
D #011 NBR70 O-Ring
E Purge Poppet Spring
F Purge Poppet
G Regulator Seal
H Adjuster Top
I #008 NBR70 Internal O-Ring
J #011 NBR70 External O-Ring
K Regulator Spring
L Regulator Piston
M 14x2 NBR70 O-Ring
N Regulator Cap
D
E
G
J
M
A
F
H
K
L
N
C
I
B
Fig.1
B
D
E
J
K
A
C
F
G
H
I
Fig.1
