PLANET ECLIPSE ETHA3 - Technical: Parts List

Etha3 etha3
24 25
SUB TITLE PARTS LIST
Etha3 etha3
24 25
PARTS LIST PARTS LIST

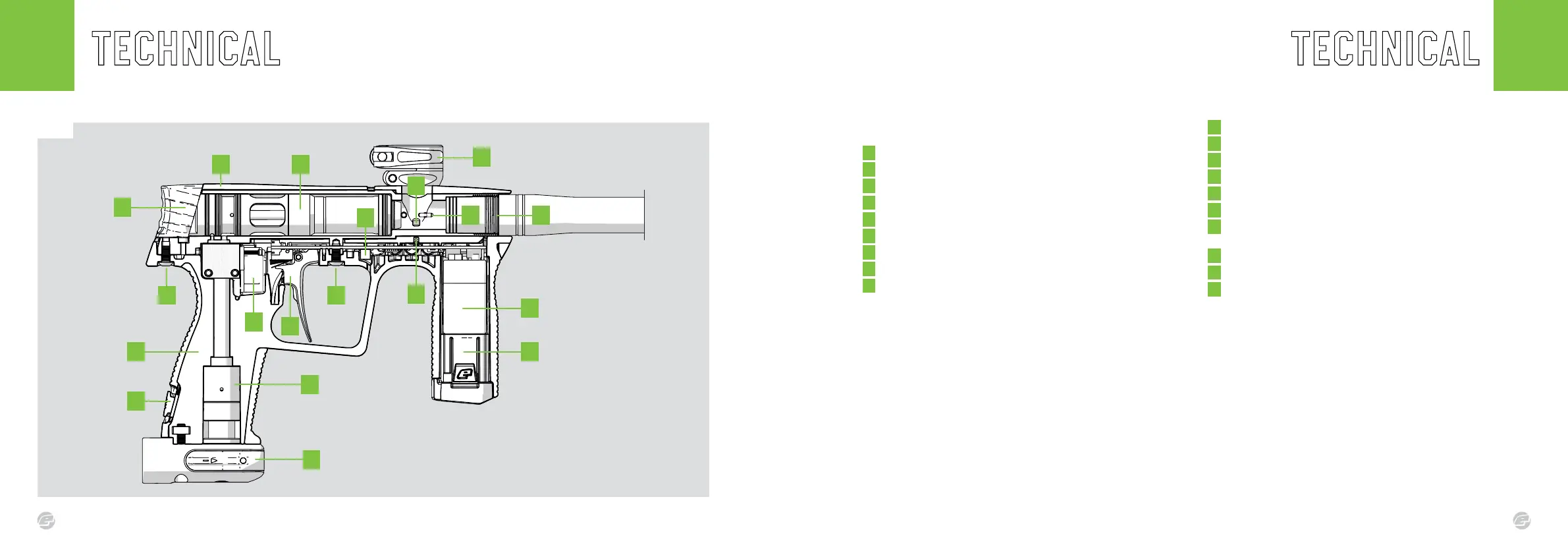

FIG.1
A Clamping Feed Tube Assembly
B Marker Body Shell
C Quick-Release Back Cap
D Gamma Core Bolt Assembly
E Rubber Detent
F On/Off button (left side only)
G Solenoid Assembly
H Rear Frame Screw
I Front Frame Screw
J Frame Assembly
K Trigger Assembly
L Grip Retaining Clip
M Regulator Assembly
N Lock N’ Load Battery Assembly
O POPS Assembly
P Barrel O-Ring
#016 NBR70
Q 9V Battery
R Light Pipe
S Breech Sensor
I
S
H
G
K
A
EEE EEP
EEQ
EEM
EEN
EEO
C
J
L
B D
F
R
Fig.1
