SUB TITLE PUSH ON PURGE SYSTEM (POPS) ASSEMBLY
Etha3 etha3
28 29

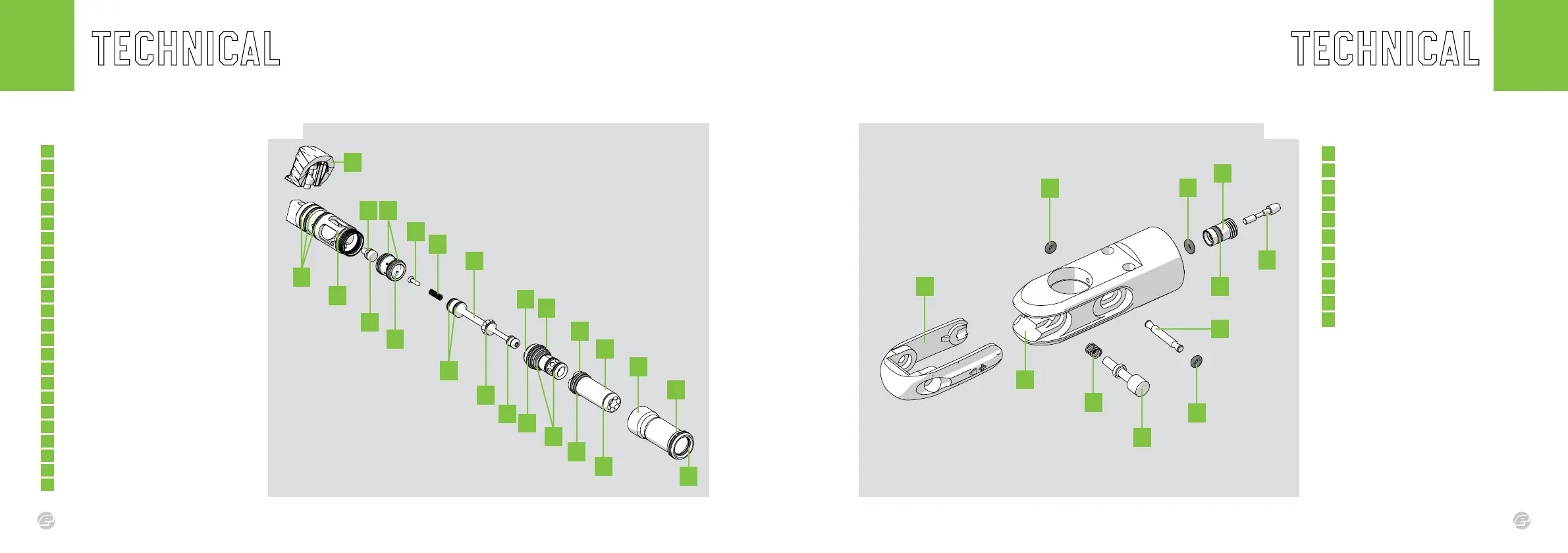

GAMMA CORE BOLT ASSEMBLY (68CAL) BOLT ASSEMBLY-50CAL
FIG.1
A Quick Release Back Cap
B #020 NBR70 O-Ring
C Valve Chamber
D #010 NBR70
E Plunger
F Switch
G #016 NBR70 O-Ring
H Spring Guide
I Spool Spring
J Spool
K #012 NBR70 O-Ring
L #011 NBR70 O-Ring
M #008 NBR70 O-Ring
N Bolt Guide
O #014 NBR70 O-Ring
P 14 x 2 NBR70 O-Ring
Q #013 NBR70 O-Ring
R Bolt
S 14 x 2 NBR70 O-Ring
T #015 NBR90 O-Ring
U #013 NBR70 O-Ring
V Can
W #020 NBR70 External O-Ring
X #017 NBR70 Internal O-Ring
C
E
F
K
P
Q
D
J
N
O
EEA
B
L
M
T
U
R
S
V
W
X
I
H
G
Fig.1
FIG.1
A POPS Bonnet
B POPS Body
C Latch Spring
D Latch Button
E Push Rod
F #004 NBR70
G #004 NBR70
H #005 NBR90 (Internal O-Ring)
I #007 NBR70 (External O-Ring)
J POPS Insert
K POPS Pin
G
D
C
B
I
K
F
Fig.1
E
A
H
J
