SUB TITLE TWO-PIECE GRIPS
Etha3 etha3
30 31

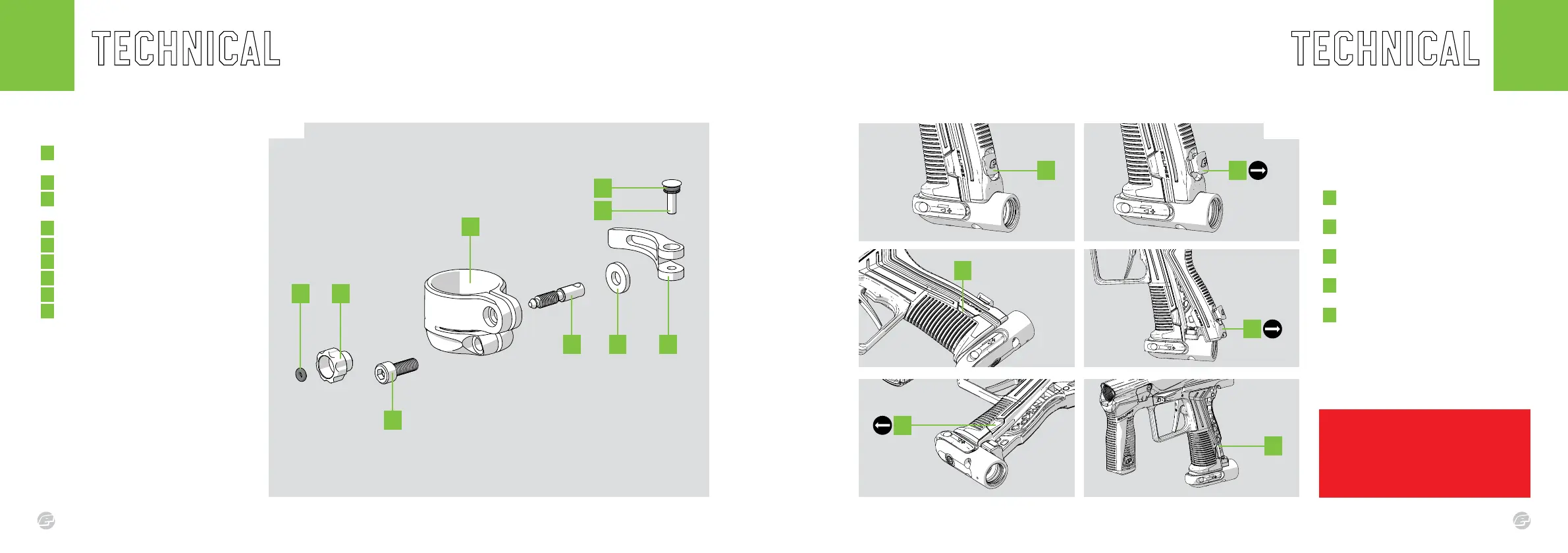

CLAMPING FEED NECK ASSEMBLY TWO-PIECE GRIPS
FIG.1
A Clamping Feed Nut O-Ring
#004 NBR70
B Clamping Feed Nut
C Short Clamping Feed Screw
10-32 UNF x 1/2”
D Feed Tube
E Machined Clamping Feed Screw
F Feed Insert
G Feed Lever
H Feed Swivel
I Feed Swivel O-Ring
#006 NBR70
Fig.1
C
E F G
I
H
D
A B
The tool-less two-piece grip system makes it
incredibly easy to remove and clean the grips
after a big day out in the eld.
FIG-1
A Locate and pull back the rear grip
locking tab.
B Use the nger recess to help release
the rear grip section.
C Once released, pull to fully remove
the rear grip section from the frame.
D The front grip section can now be
released and removed.
E You can now easily access the frame
and separate grip pieces for thorough
cleaning.
Repeat the steps in reverse order to reattach
the grips to the frame.
warning!
When cleaning the frame, there are exposed
operational elements that may be affected if wet.
Fig.1
A
C
A
B
D
E
