PLANET Ethernet Hub
8

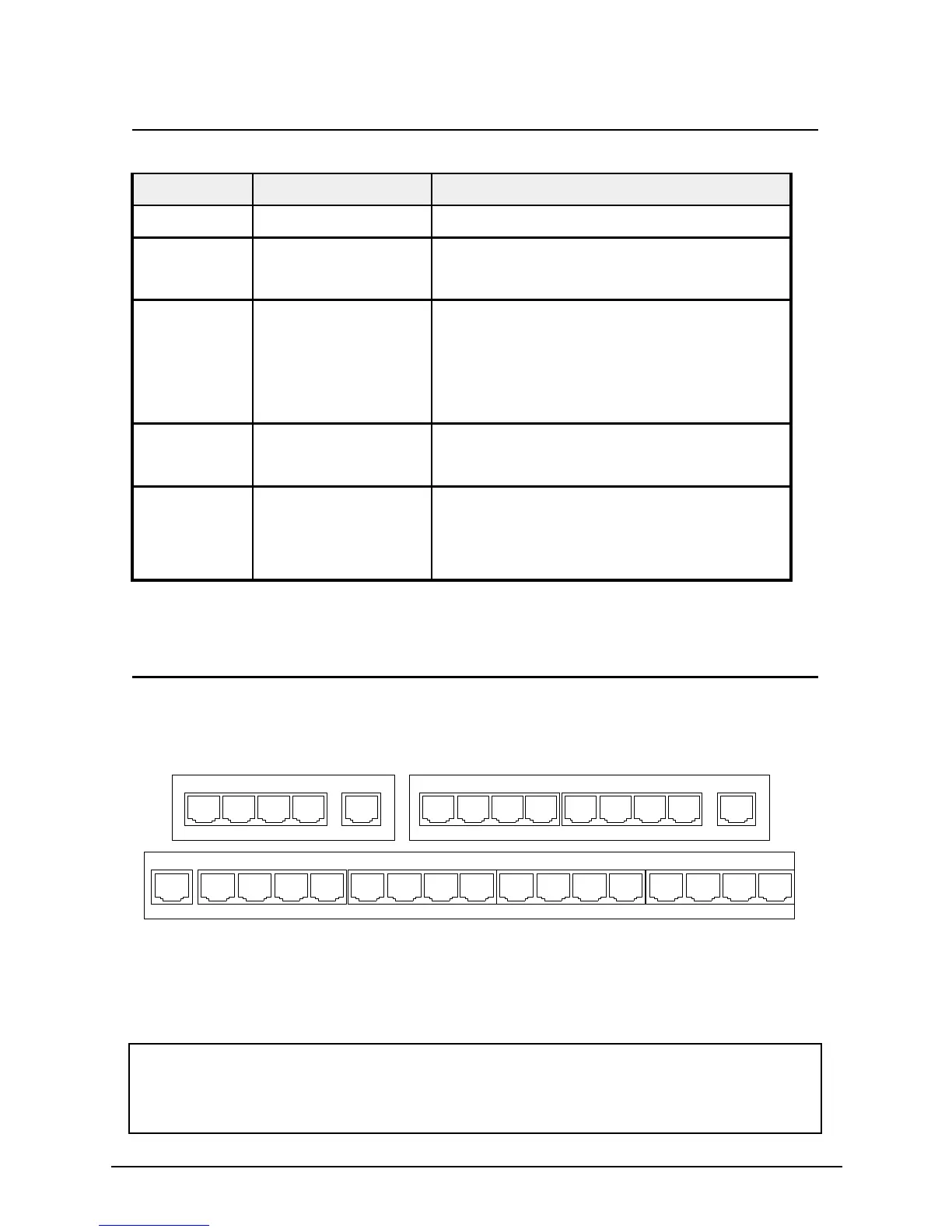

LED indicator
LEDs Status Description
Power Steady Green Indicates hub is power on
Collision Blinking Red Blinks when network collision
are detected
Link/RX Steady Orange Indicates Link integrity pulses
are being received
Blinking
Orange
Blinks when data is received
BNC Blinking
Orange
Blinks when data is receiving /
transmitting
AUI Blinking
Orange
(EH-1600)
Blinks when data is receiving /
transmitting
Front & Rear Panel
Front Panel
As shown in Figure 2-3.
Figure 2-3 Front Panel of EH-500/ EH-800A/EH-1600
5/8/16-port RJ-45/STP connector and one daisy chain port.
Note: Use of both “DAISY-CHAIN” port and STP1 of EH-1600, STP8
of EH-800A or STP4 of EH-500 will make these two ports
malfunction.
