Step 5: After the brackets are attached to the 802.3at PoE+ Switch, use suitable
screws to securely attach the brackets to the rack, as shown in Figure
3-3.
1
PWR
PoE Port Status
5 9 13 17 21
3 7 11 15 19 23
25
Gigabit
26
PoE
2 6 10 14 18 22
4 8 12 16 20 24
PoE
FGSW-2622VHP
24-Port 10/100TX 802.3at PoE
+
2-Port Gigabit
Ethernet Switch
4 6 82
1 3 5 7
PoE In-Use
ACTLNK
1000
ACTLNK
100
26
25
26
25
12 14 1610
9 11 13 15
20 22 2418
17 19 21 23
Standard
VLAN

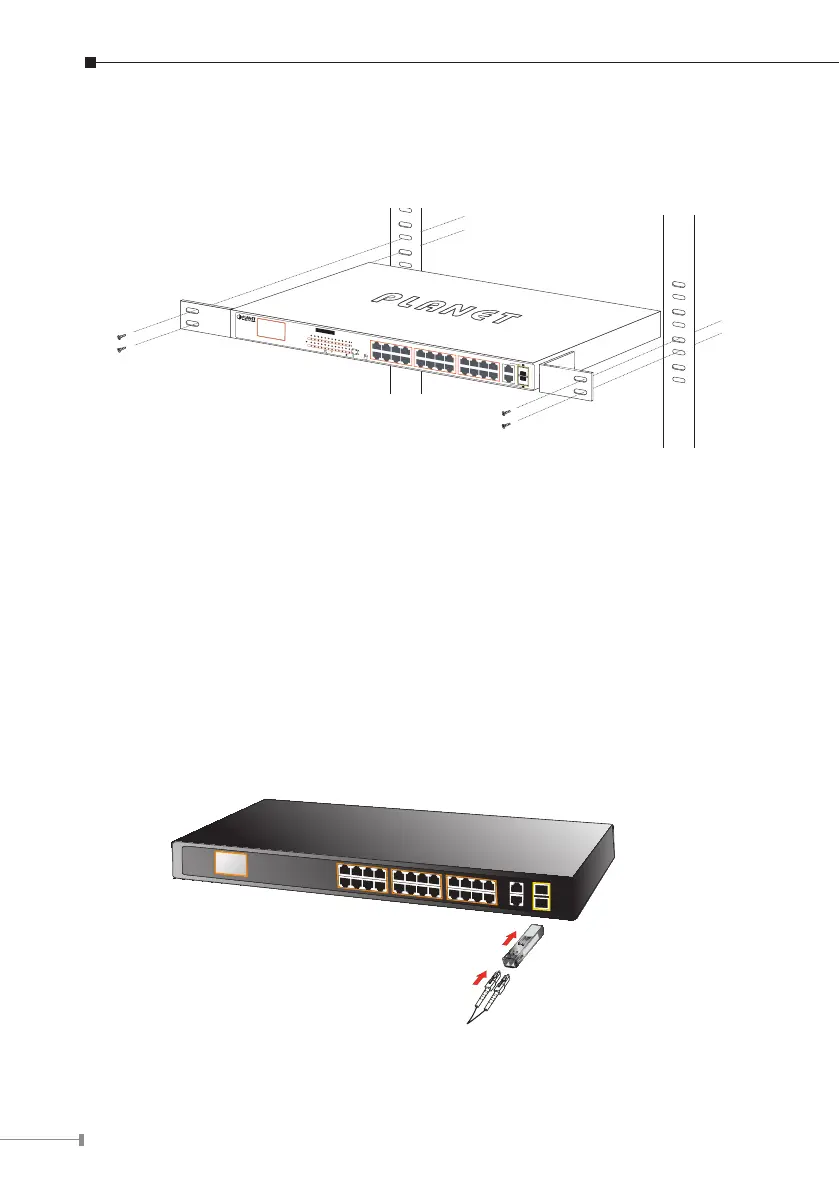

Figure 3-3: Mounting the 802.3at PoE+ Switch in a Rack
Step 6: Proceed with Steps 4 and 5 of session 3.1 Desktop Installation to connect
the network cabling and supply power to your Switch.
3.3 Installing the SFP Transceiver
The sections describe how to insert an SFP transceiver into an SFP slot of the
802.3at PoE+ Switch.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and
out the transceiver to/from any SFP port without having to power down the
802.3at PoE+ Switch, as the Figure 3-4 shows.
MGB-Series Module
LC Fiber Cable
1
2
Figure 3-4: Plug In the SFP Transceiver
