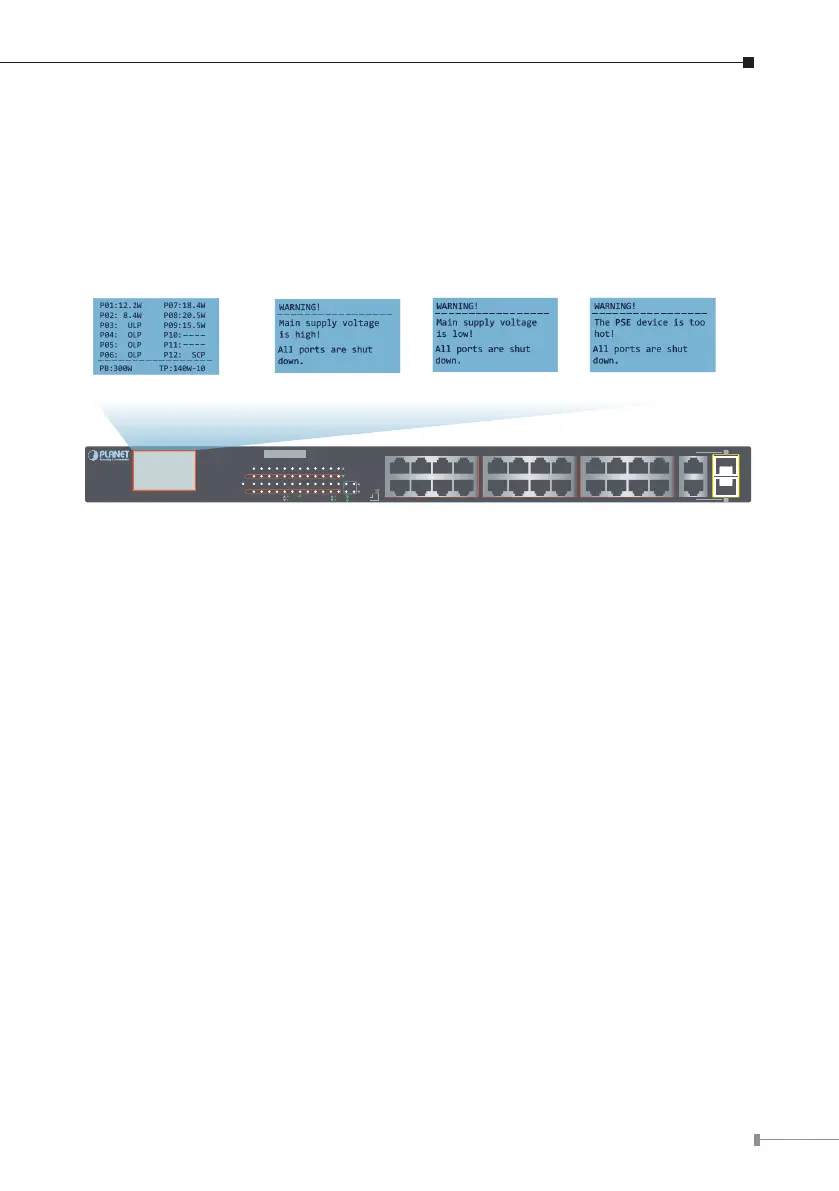

LCD Monitor for Real-time PoE Usage and System Status Display
The LCD monitor of the FGSD/FGSW 802.3at PoE+ Switch series clearly shows the
levels of PoE power usage and system status, such as overload, low voltage, over
voltage and high temperature. With its brand-new LCD monitor, user is able to
obtain detailed information about real-time PoE power usage and real-time system
status of the FGSD/FGSW 802.3at PoE+ Switch series.
1
PWR
PoE Port Status
5 9 13 17 21
3 7 11 15 19 23
25
Gigabit
26
PoE
2 6 10 14 18 22
4 8 12 16 20 24
PoE
FGSW-2622VHP
24-Port 10/100TX 802.3at PoE
+
2-Port Gigabit
Ethernet Switch
4 6 82
1 3 5 7
PoE In-Use
ACTLNK
1000
ACTLNK
100
26
25
26
25
12 14 1610
9 11 13 15
20 22 2418
17 19 21 23
Standard
VLAN
PoE Port Status Power Over-voltage Protection Power Over Temperature ProtectionPower Low-voltage Protection
Easy Installation and Cable Connection
As data transfer and High Power PoE are transmitted over a cable, the FGSD/
FGSW 802.3at PoE+ Switch series is able to reduce the need of extended cables
and electrical outlets on the wall, ceiling or any unreachable place. It helps to
lower the installation costs and simplify the installation effort. All RJ45 copper
interfaces of the FGSD/FGSW 802.3at PoE+ Switch series support 10/100Mbps
and 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45
Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can
detect the type of connection to any Ethernet device without requiring special
straight-through or crossover cables.
Flexible and Extendable Uplink Solution
The FGSD/FGSW 802.3at PoE+ Switch series provides 2 extra Gigabit TP/SFP
combo interfaces supporting 10/100/1000BASE-T RJ45 copper for surveillance
network devices such as NVR, video streaming server or NAS to facilitate
surveillance management. Or through these Gigabit speed ber SFP slots, the
1000BASE-SX/LX SFP (Small Form-factor Pluggable) ber transceiver is inserted to
be uplinked to a backbone switch and monitoring center over a long distance. The
distance can be extended from 550m to 2km (multi-mode ber), even going up to
above 10/20/30/40/50/60/70/120km (single-mode ber or WDM ber). They are
well suited for applications within the enterprise data centers and distributions.
