- 19 -

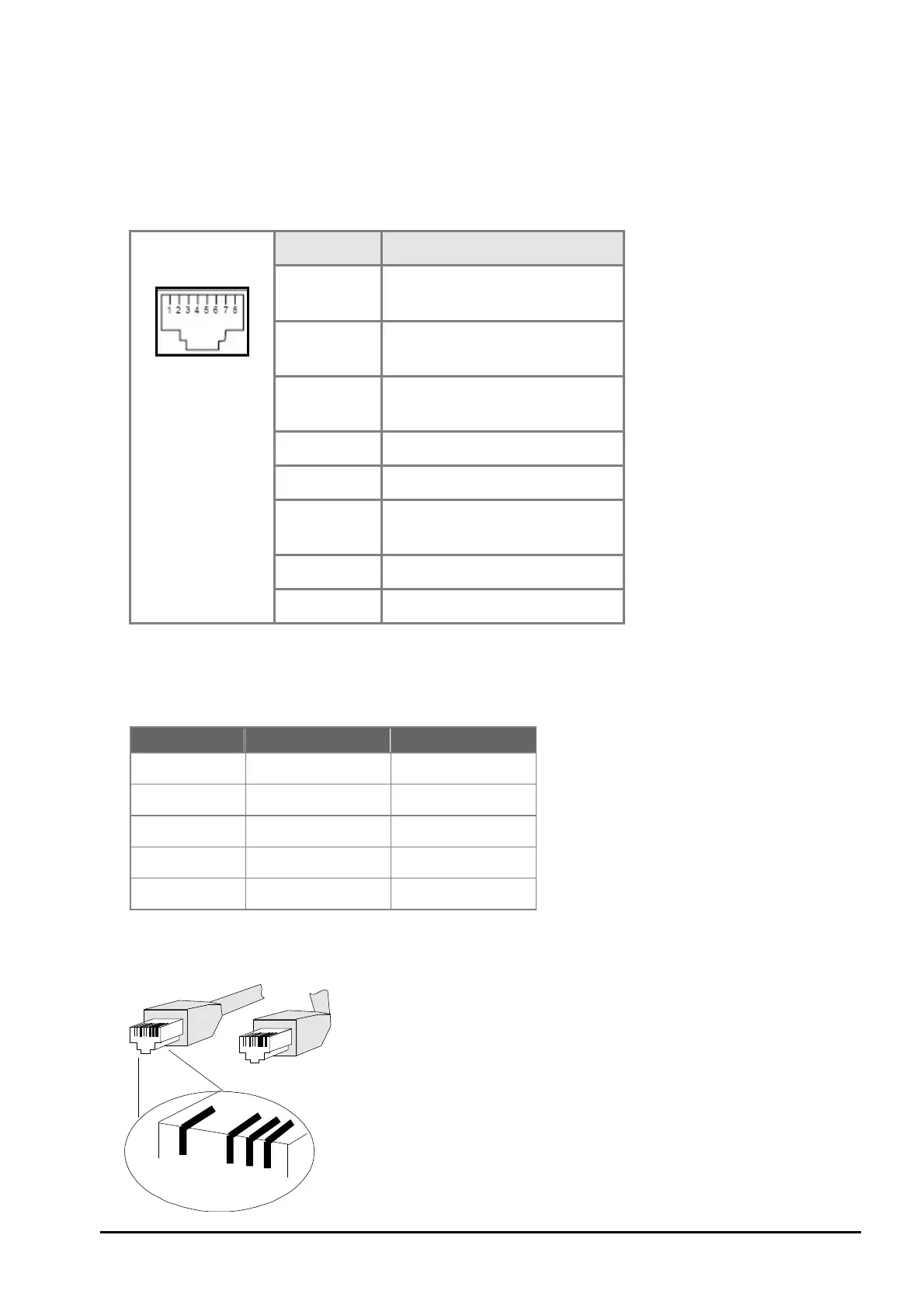

APPENDIX A NETWORKING CONNECTION
A.1 DATA OUT PoE Switch RJ-45 Port Pin Assignments (Port 1 to Port-4)
PIN NO RJ-45 SIGNAL ASSIGNMENT
1
• Output Transmit Data +
• Power +
2
• Output Transmit Data –
• Power +
3
• Receive Data +
• Power -
4
-
5
-
6
• Receive Data –
• Power -
7
-
8
-
A.2 Switch‘s RJ-45 Pin Assignments (Port-5 to Port-8)
Contact MDI MDI-X
1 1 (TX +) 3
2 2 (TX -) 6
3 3 (RX +) 1
6 6 (RX -) 2
4, 5, 7, 8 Not used Not used
A.3 RJ-45 cable pin assignment
2 1 3 6
1
2
3
6
2 1
3 6
