2.6 Rack Mounting
To install the Switch in a 10-inch standard rack, follow the instructions described below.
Step1: Place your Fast Ethernet Switch on a hard flat surface, with the front panel positioned towards your front side.

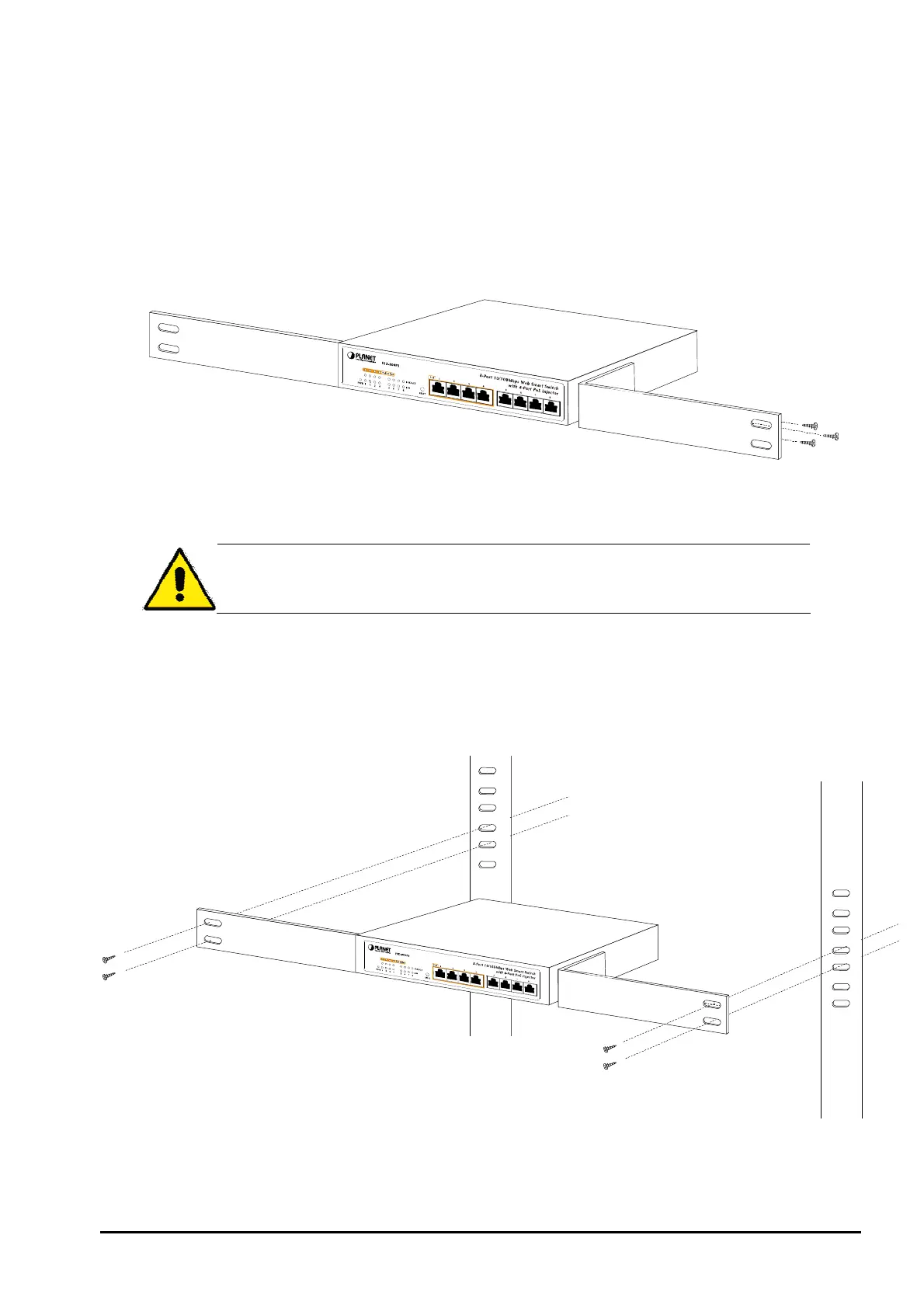

Step2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package. Figure 2-4
shows how to attach brackets to one side of the Switch.
Figure 2-4 Attaching the brackets to the Switch.
You must use the screws supplied with the mounting brackets. Damage caused to the parts by
using incorrect screws would invalidate the warranty.
Step3: Secure the brackets tightly.
Step4: Follow the same steps to attach the second bracket to the opposite side.
Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as
shown in Figure 2-5.
Figure 2-5 Mounting the Switch in a Rack
Step6: Proceeds with the steps 4 and steps 5 of session 2.5 Desktop Installation to connect the network cabling and
supply power to your Switch.
