2.5 Desktop Installation
To install the Switch on desktop, simply follow the next steps:

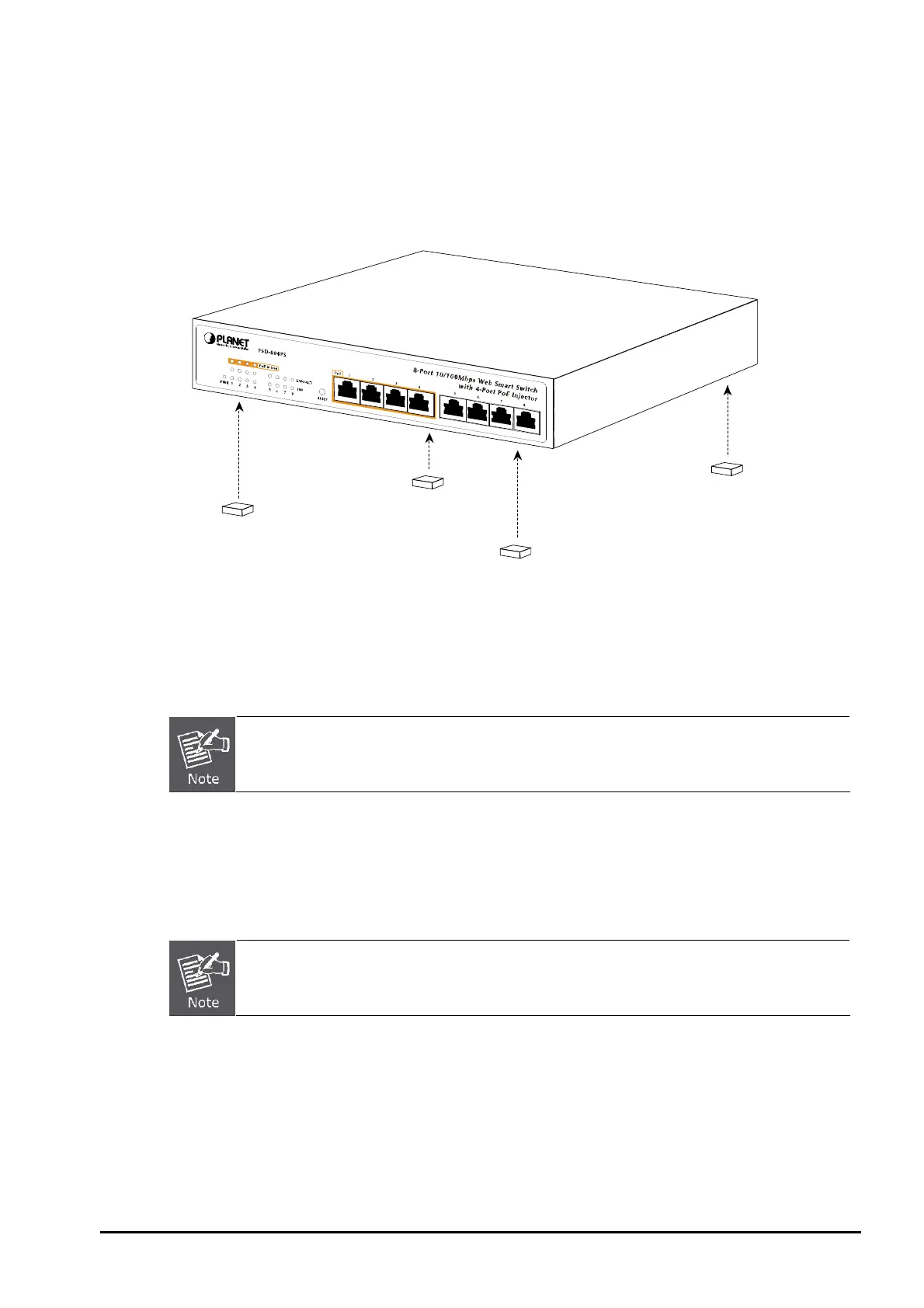

Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch, as shown in Figure 2-3.
Figure 2-3 Attaching the rubber feet to the Fast Ethernet Switch
Step2: Place the Switch on desktop near an AC power source.
Step3: Keep enough ventilation space between the Switch and the surrounding objects.
When choosing a location, please keep in mind the environmental restrictions discussed in Chapter
1, Section 4, in Specification.
Step4: Connect your Switch to 802.3af complied Power Devices (PD) and other network devices.
A. Connect one end of a standard network cable to the 10/100 RJ-45 ports on the Back of the Switch.
B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
Connection to the Switch requires UTP Category 5 network cabling with RJ-45 tips. For more
information, please see the Cabling Specification in Appendix A.
Step5: Supply power to the Switch.
A. Connect one end of the power cable to the Switch.
B. Connect the power plug of the power cable to a standard wall outlet.
When the Switch receives power, the Power LED should remain solid Green.
