17
1000Base-X
LC Fiber
1000Base-X
LC Fiber
1000Base-X
SFP Transceiver
5V DC power
10/100/1000Base-T
UTP

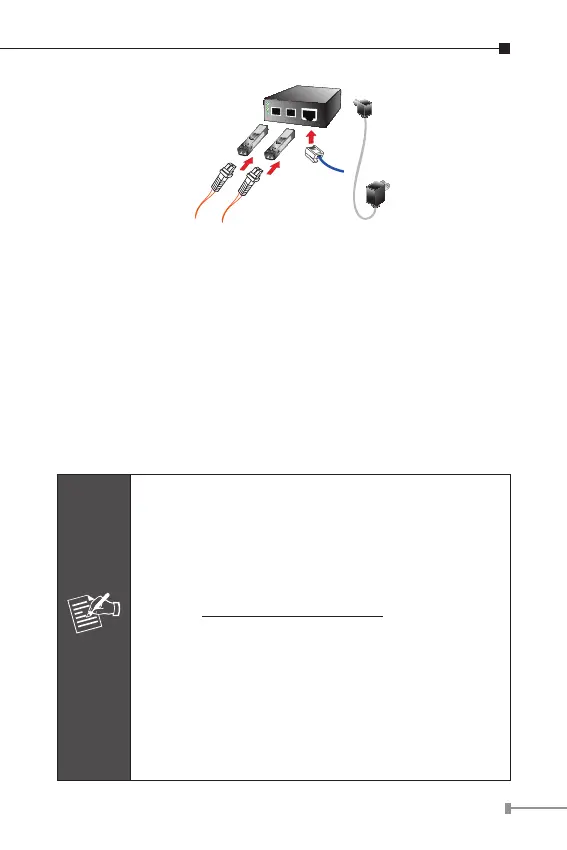

Figure 2-5-1: GT-1205A Gigabit Media Converter Stand Alone Installation
Step 4: Connect the ber cable. Attach the duplex LC connector
on the network cable into the SFP transceiver.
Step 5: Attach ber cable from the GT-1205A to the ber
network. TX, RX must be paired at both ends.
Step 6: Connect the 5V DC power adapter to the GT-1205A
and verify that the Power LED lights up.
Step 7: Turn on the power of the device/station; the LINK
LED should light when all cables are well attached.
1. It is recommends using PLANET MGB series
SFP modules for the Gigabit Media Converter.
If you insert a SFP transceiver that is not
supported, the Gigabit Media Converter will not
recognize it. Please check appendix or go visit
our WEB site for details specification informa-
tion. http://www.planet.com.tw
2. To prevent from optic acceptor malfunction,
check the both wires / transmitter before power
on the converter.
3. To remove the SFP module, please remove the
fiber connectors in advanced and push the belt
or letch of the module. Pull out the module
with violent may damage the module and the
Gigabit Media Converter.
