2.2 Front Panel
The Front Panel of the Gigabit Media Converter consists of two
1000Base-X SFP slots and one Auto-Sensing 10/100/1000Mbps
Ethernet RJ-45 Port. Figure 2-2-1 shows a front panel of Gigabit
Media Converter.
1000
1
1
2
2
3
PWR
LNK/
ACT
10/100/1000Base-T to Dual 1000Base-X SFP

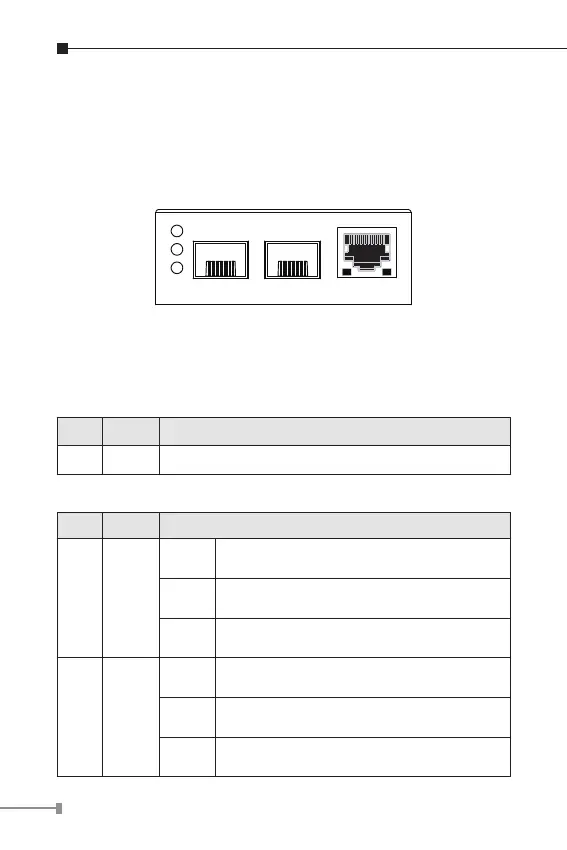

Figure 2-2-1: GT-1205A Front Panel
2.2.1 LED Indicators
System
LED Color Function
PWR Green Lit: Power on.
1000Base-SX/LX SFP Slots
LED Color Function
1 Green
Lit
Indicate that the ber optical port is
link up.
Blink
Indicate that the converter is actively
sending or receiving data over that port.
Off
Indicate that the ber optical port is
link down.
2 Green
Lit
Indicate that the ber optical port is
link up.
Blink
Indicate that the converter is actively
sending or receiving data over that port.
Off
Indicate that the ber optical port is
link down.
