2. HARDWARE DESCRIPTION
This product provides three different running speeds – 10Mbps, 100Mbps and 1000Mbps in the same Managed Media
Converter and automatically distinguishes the speed of incoming connection.
This section describes the functionalities of GT-90X’s components and guides how to install it on the desktop or shelf.
Basic knowledge of networking is assumed. Please read this chapter completely before continuing.
2.1 GT-90X Front Panel
The Front Panel of the Managed Media Converter consists of one 1000Base-SX / 1000Base-LX / mini-GBIC SFP /
1000Base-LX WDM ports and one Auto-Sensing 10/100/1000Mbps Ethernet RJ-45 Port. Figure 2-1 & 2-2 & 2-3 shows a
front panel of Managed Media Converter.

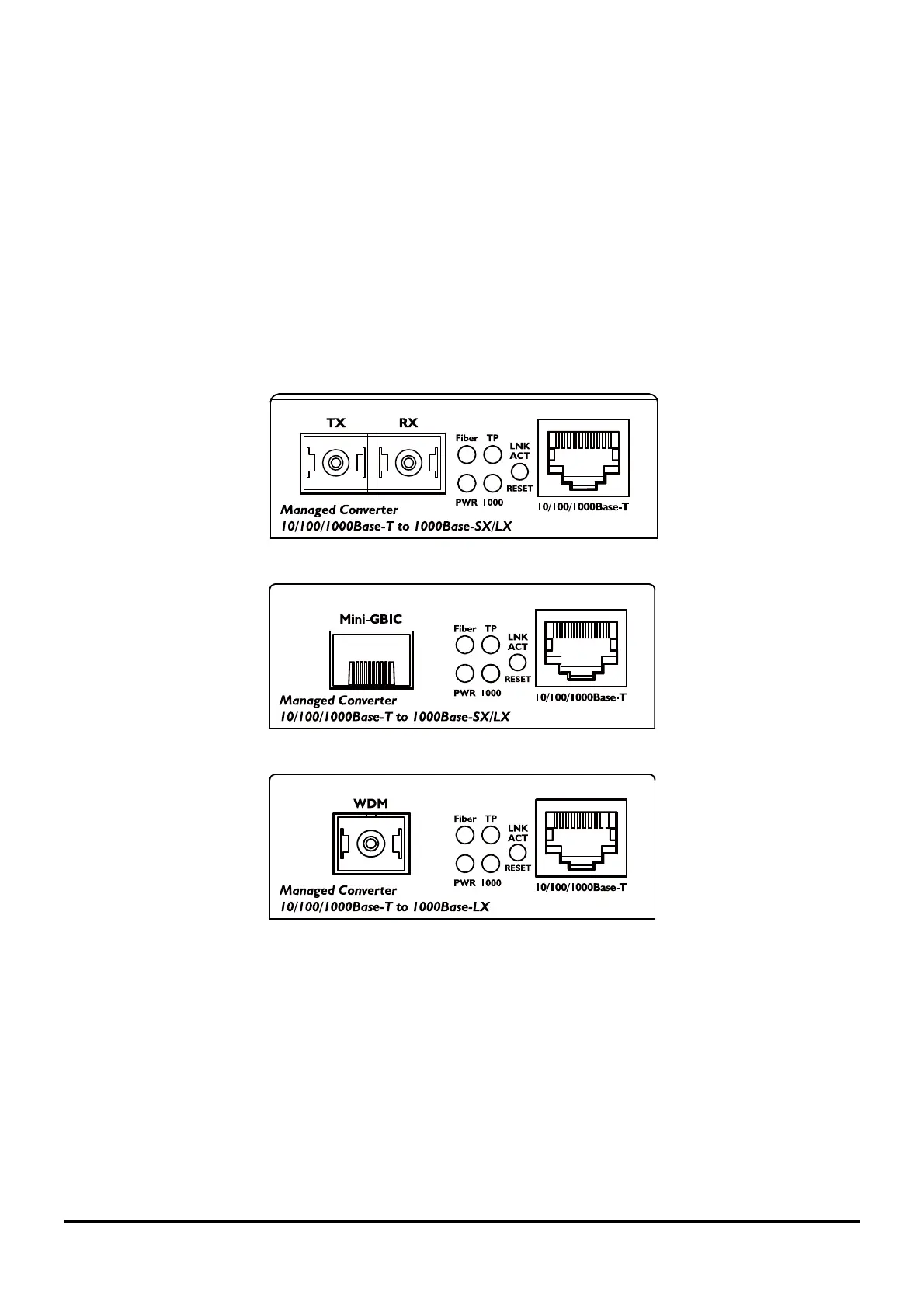

Figure 2-1 PLANET GT-902 / GT-902S Front Panel
Figure 2-2 PLANET GT-905A Front Panel
Figure 2-3 PLANET GT-906A/B Front Panel
