4.3.2 Port Status
This function allows displaying TP / Fiber port detail status, such as Link Status, Duplex Mode, Flow control, Speed and
Auto negotiation. Press the “Refresh” button to renew the screen, the screen in Figure 4-23 appears and Table 4-7
describes the Port Status object of Managed Media Converter.

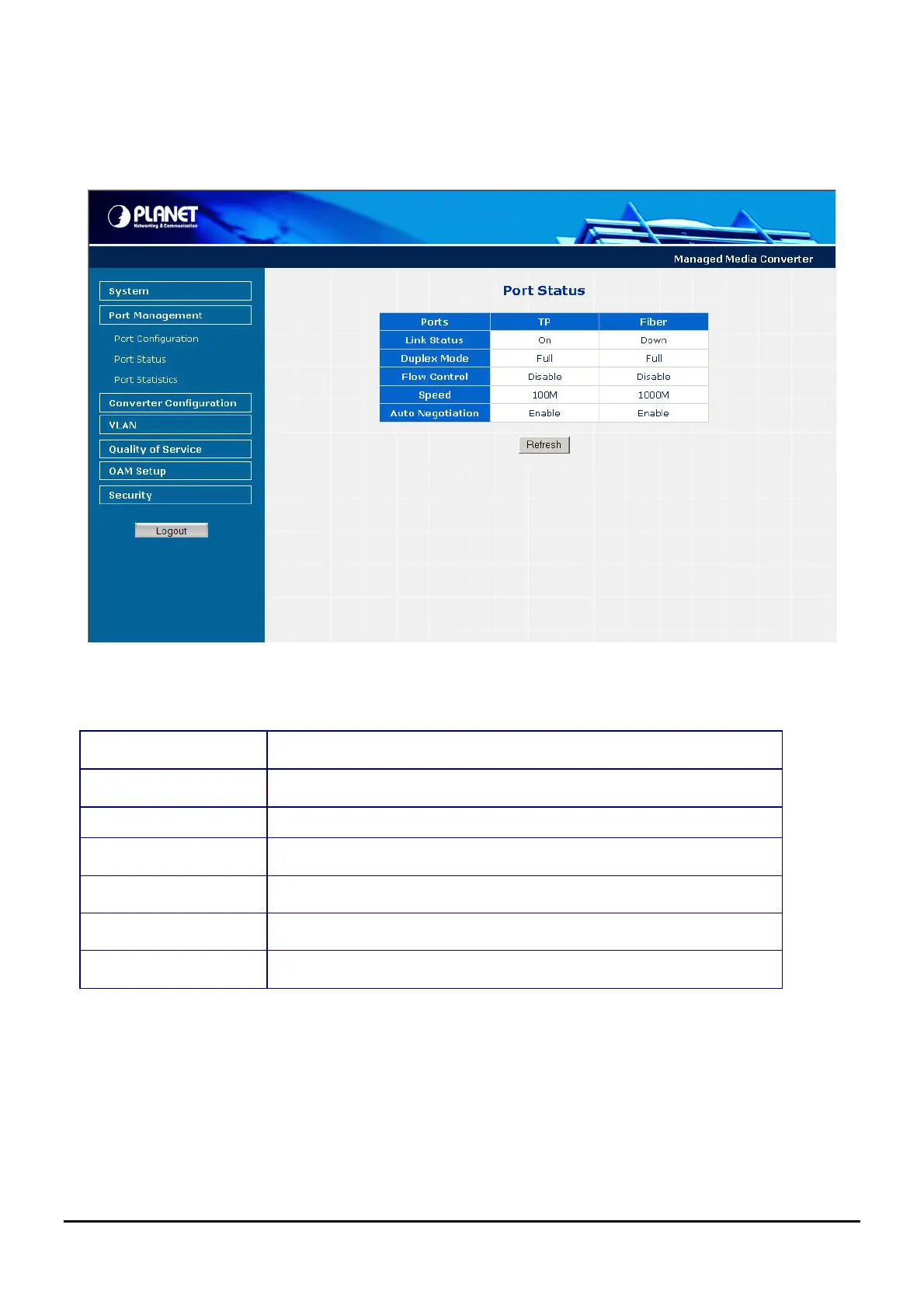

Figure 4-23 Port Status Web Page screen
The Port Status Web page includes the following configurable data:
Port
Indicate the TP port and Fiber port.
Link Status
Displays the current link status of TP and Fiber port.
Duplex Mode
Displays the current duplex mode of TP and Fiber port.
Flow Control
Displays the current Flow Control status of TP and Fiber port.
Speed
Displays the current speed mode of TP and Fiber port.
Auto Negotiation
Displays the current Auto negotiation status of TP and Fiber port.
Refresh button
Press “Refresh” button to refresh current status.
Table 4-7 Descriptions of the Port Status Web Page Screen Objects
