5

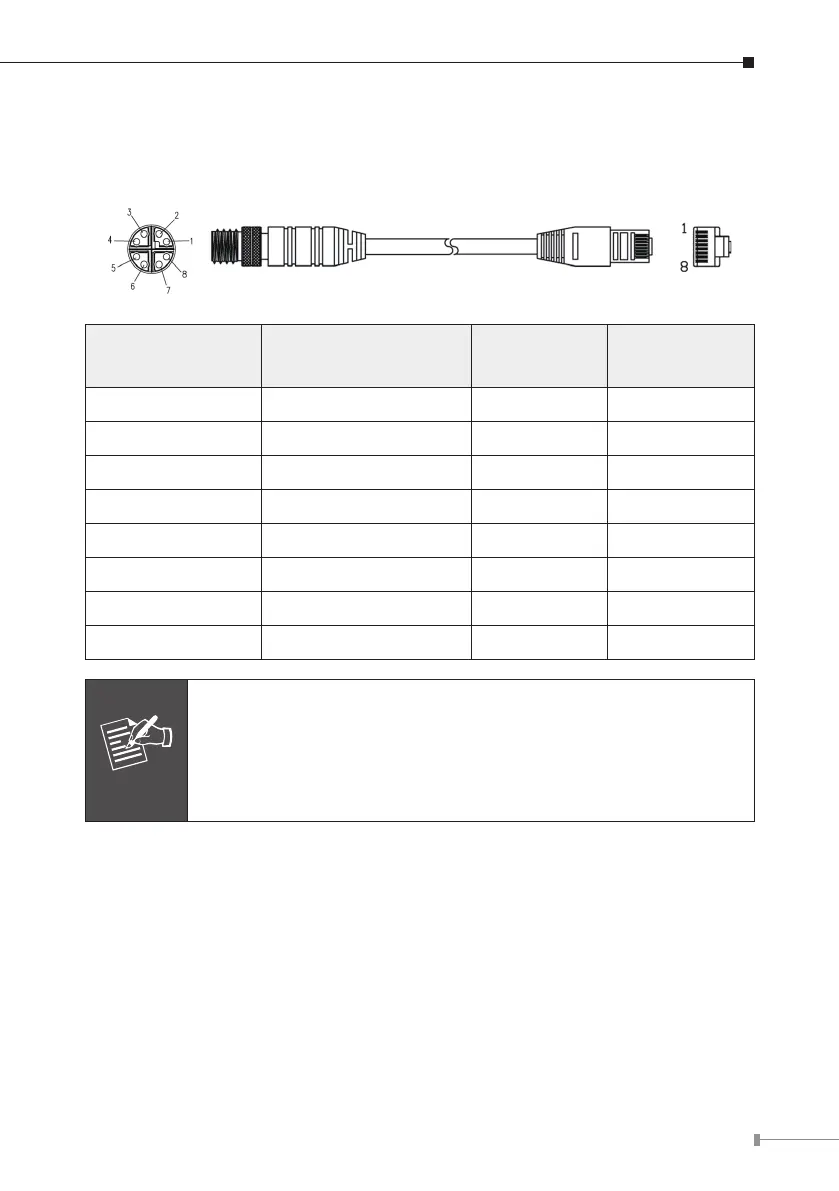

3. M12 (8-pin, X-coded Male) to RJ45 (8-pin)
Straight-through UTP Cabling
M12 X-coded Male
Connector Pin No.
MDI
1000BASE-T Signal ID
T568B Color
RJ45 Connector
Pin No
1 BI_DA+ white/orange 1
2 BI_DA- orange 2
3 BI_DB+ white/green 3
4 BI_DB- green 6
5 BI_DD+ white/brown 7
6 BI_DD- brown 8
7 BI_DC- White/blue 5
8 BI_DC+ blue 4
Note
As each Ethernet port of the Industrial Managed PoE+ Switch is
running in auto negotiation mode, make sure the Ethernet ports of
the corresponding Ethernet devices are also running in auto nego-
tiation mode; otherwise, the Ethernet performance will be poor.
