4. Connecting M12 Cable to the Industrial Managed
PoE+ Switch

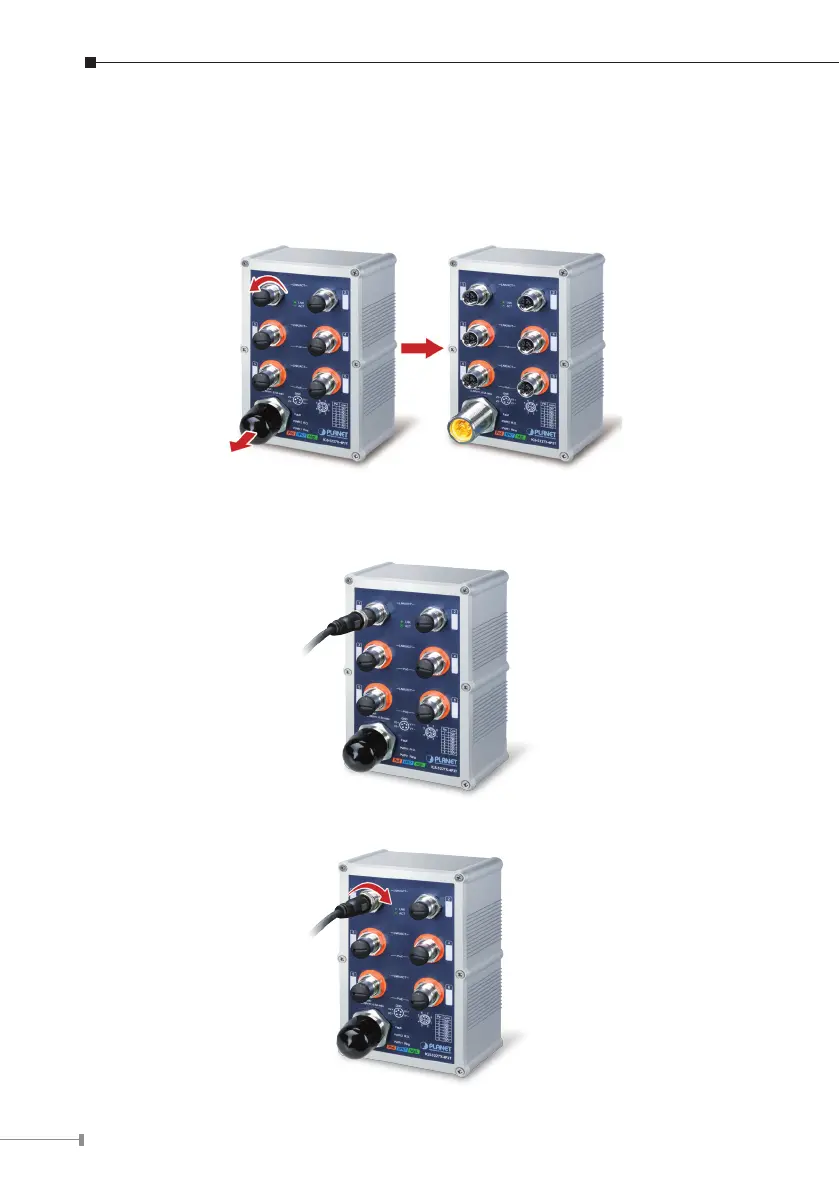

Step 1: Turn counterclockwise to remove the waterproof caps of an M12
connector and M23 power input.
Step 2: Insert the M12 UTP male connector into the M12 female Gigabit Ethernet
port of the Industrial Managed PoE+ Switch.
Step 3: Turn clockwise to tighten the connection to the M12 connector.
