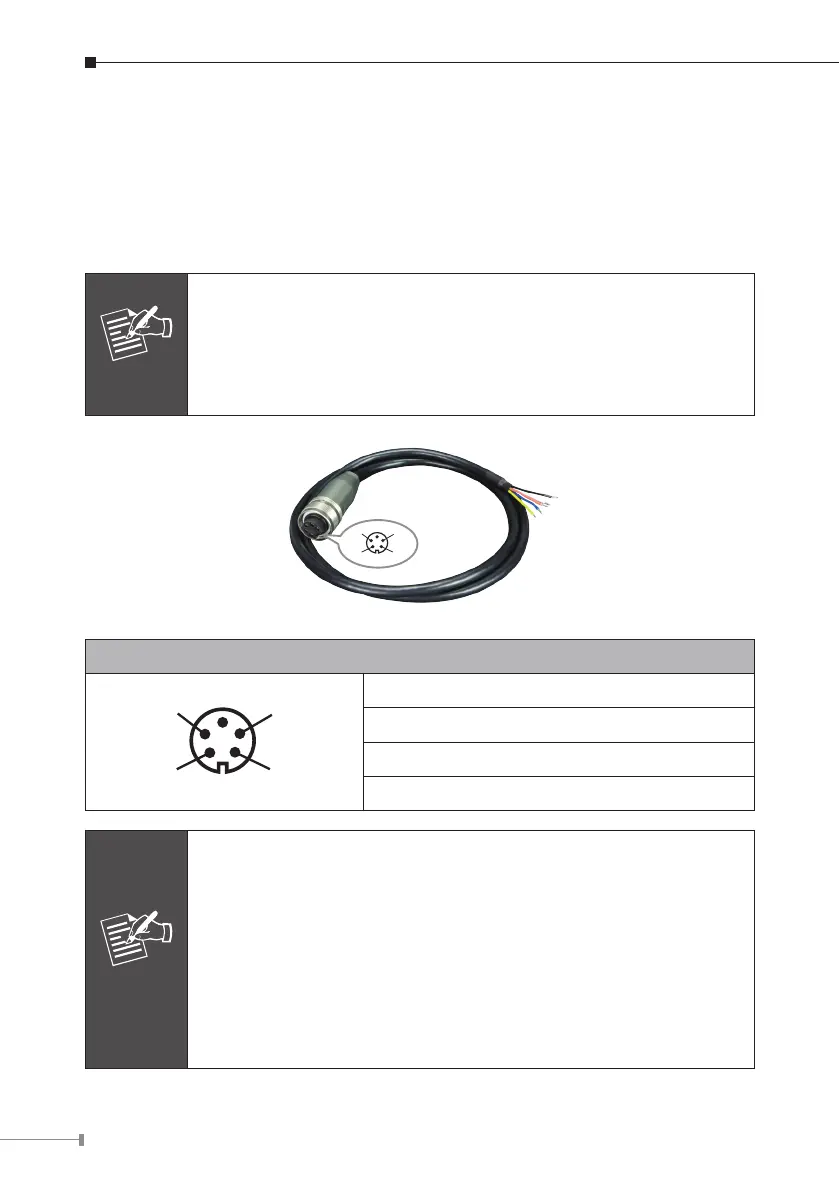

5. M23 DC Power Cable Pin Assignment
The front panel of the Industrial Managed PoE+ Switch provides one M23 DC
power 5-pin male connector for DC power input. Please use the power cable with
the M23 DC power 5-pin female connector from the Industrial Managed PoE+
Switch package for DC power input. The M23 DC power cable pin assignment is
shown below:
Note
1. The box doesn’t contain the M23 5-pin A-coded female
connector power cable.
2. Please contact your local reseller to purchase CB-M23F5F-120
from PLANET.
V1−
V1+
V2−
V2+
CB-M23F5F-120 M23 DC power cable pin assignment and wiring code
V1 positive (+) pin = white cable
V1 negative (-) pin = brown cable
V2 positive (+) pin = black cable
V2 negative (-) pin = yellow cable
Note
A. Make sure you connect the correct power pin to your DC power
source.
1. The wire gauge for the power cable should be in the range of
12 ~ 24 AWG
2. The DC power input range is 12 ~ 56V DC.
B. There are two methods to install the Industrial Managed PoE+
Switch – DIN-rail mounting and wall-mount plate mounting. For
more detailed information, please refer to the user’s manual.
