12
3.Afterenteringthepassword,themainscreenappearsasFigure5-3shows.

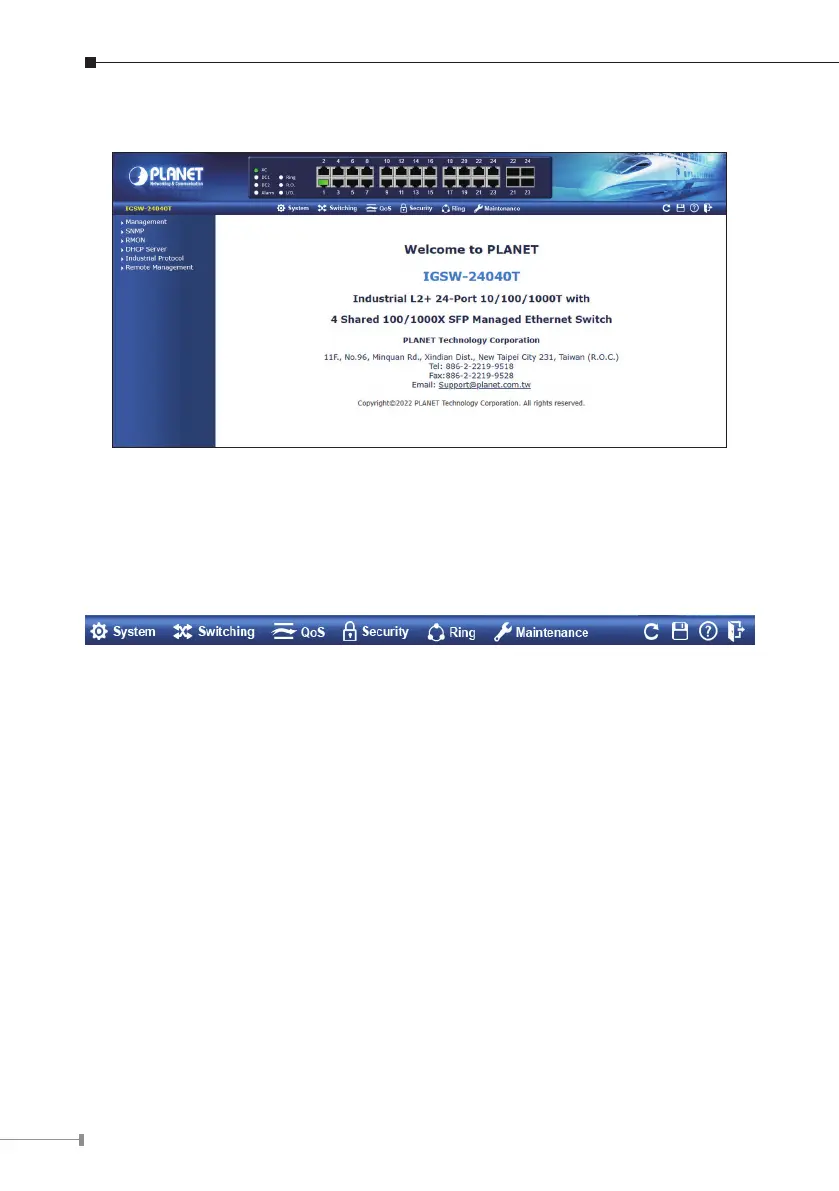

Figure 5-3: Web Main Screen of Industrial Managed Switch
The Switch Menu on the top of the Web page lets you access all the commands
and statistics the Industrial Managed Switch provides. The Switch Menu always
contains one or more buttons, such as “System”, “Switching”, “QoS”,
“Security”,“Ring”,“Maintenance”,“Refresh”,“Save”,“Help”and“Logout”.
Figure 5-4: Switch Menu
