6
4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to RJ45 type of serial port of the Industrial Managed
Switch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

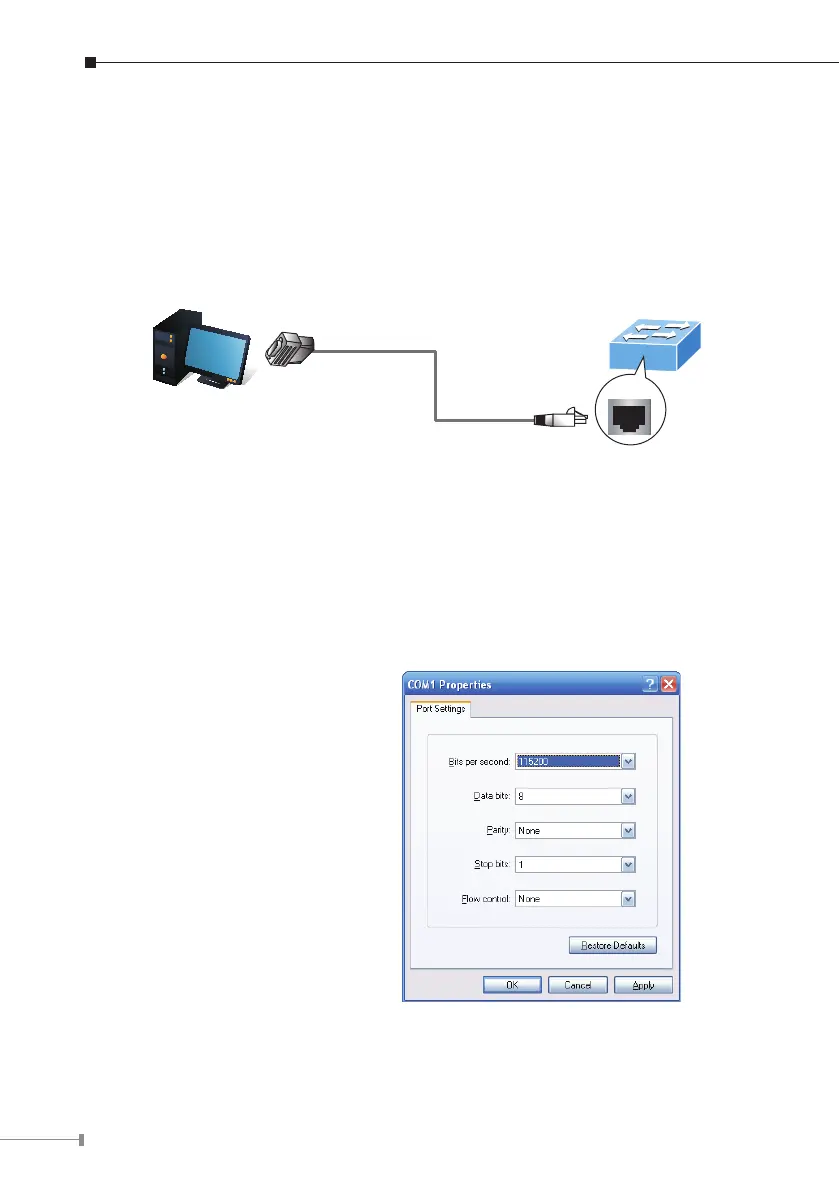

Figure 4-1: Industrial Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Industrial
ManagedSwitch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Databits:8
Parity:None
Stopbits:1
Flowcontrol:None
Figure 4-2: COM Port Conguration
