Planet IGSW-24040T Quick Installation Guide

5
3. Wiring DC Power Inputs
The 6-contact terminal block connector on the front panel of the Industrial
ManagedSwitchis usedfortwo DCredundantpower input.Pleasefollow thesteps
below to insert the power wires.

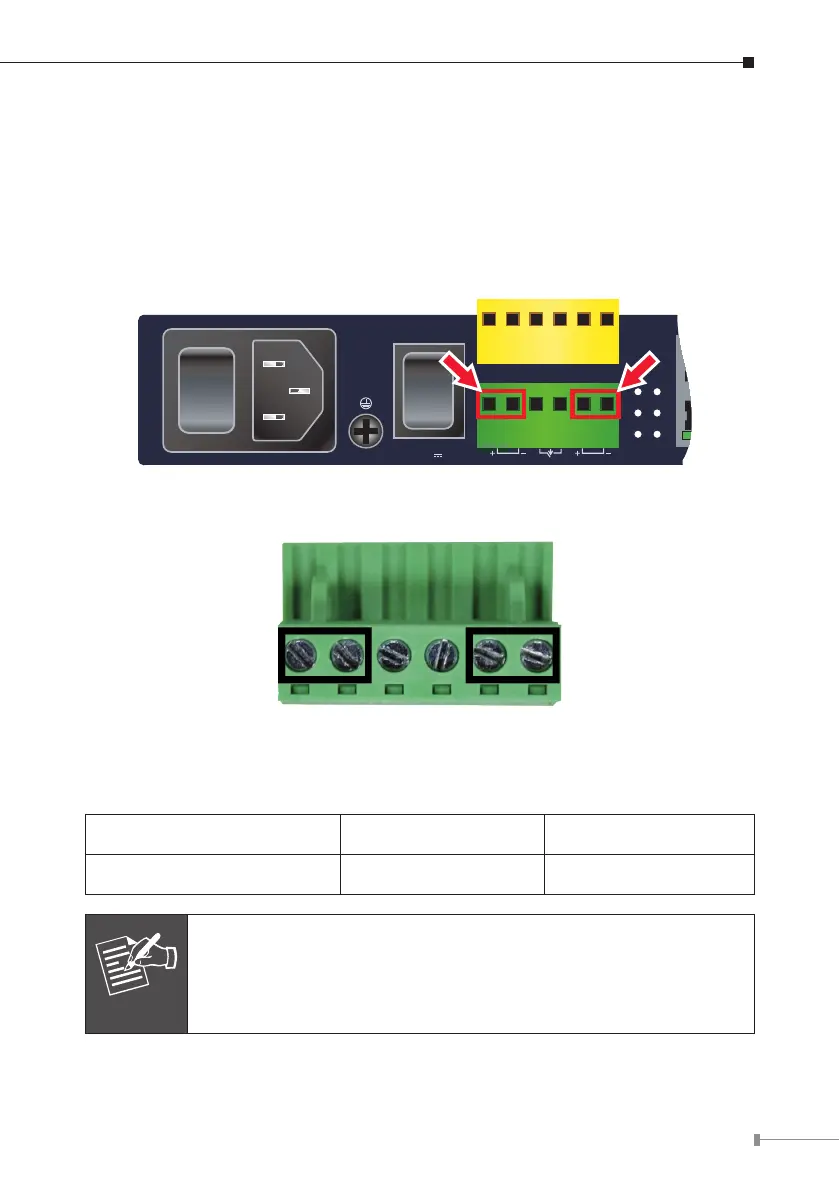

1.Insert positive/negative DC power wires into contacts 1 and 2 for DC Power 1,
or5and6forDCPower2.
RingRing
AlarmAlarm I/OI/O
ACAC
DC1DC1
R.O.R.O.DC2DC2
AlarmAlarmDC 1
DC 2
DC POWER
ON
OFF
DC Input
:
36-60V , 0.7A max.
100- 240V ~, 0.5A max.
50/60 HzOFF
ON
AC POWER
GNDGNDDO 1DO 0DI 1DI 0
Max. Fault Alarm Loading: 24V, 1A
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
1 2 3 4 5 6
V1+ V1- V2+ V2-
Power 1 Power 2
Positive(+)Pin Negative(-)Pin
IGSW-24040T Pin1/5 Pin2/6
Note
The wire gauge for the terminal block should be in the range
between12and24AWG.
