4.2 Chassis Installation and Rack Mounting
To install the Ethernet Extender in a 10-inch or 19-inch Converter Chassis with
standard rack, follow the instructions described below.
Step 1: Place your LRE-101 on a hard at surface, with the front panel
positioned towards your front side.

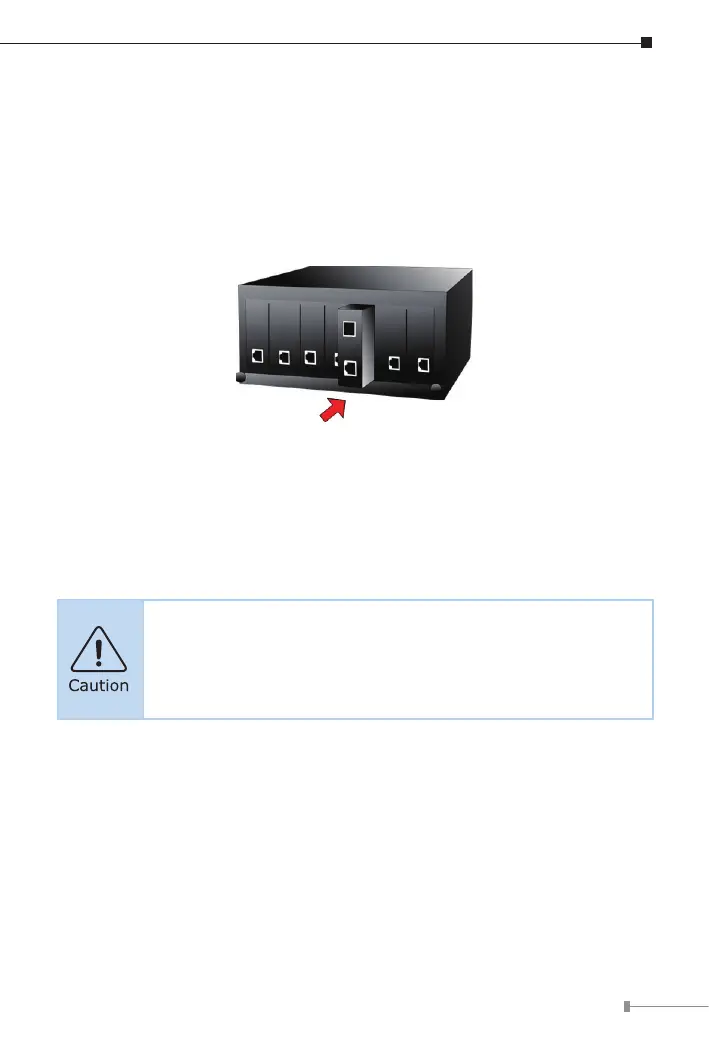

Step 2: Carefully slide in the module until it is fully and rmly tted into the
slot of the converter chassis.
Step 3: Attach a rack-mount bracket to each side of the Converter Chassis
with supplied screws attached to the package.
Step 4: After the brackets are attached to the Converter Chassis, use
suitable screws to securely attach the brackets to the rack.
Step 5: Proceed with Step 4 and Step 5 of the 4.1 Installation section to
connect the network cabling and supply power to your Converter
Chassis.
You must use the screws supplied with the mounting brackets.
Damage caused to the parts by using incorrect screws would
invalidate your warranty.
