4.3 Optional DIN-rail Installation

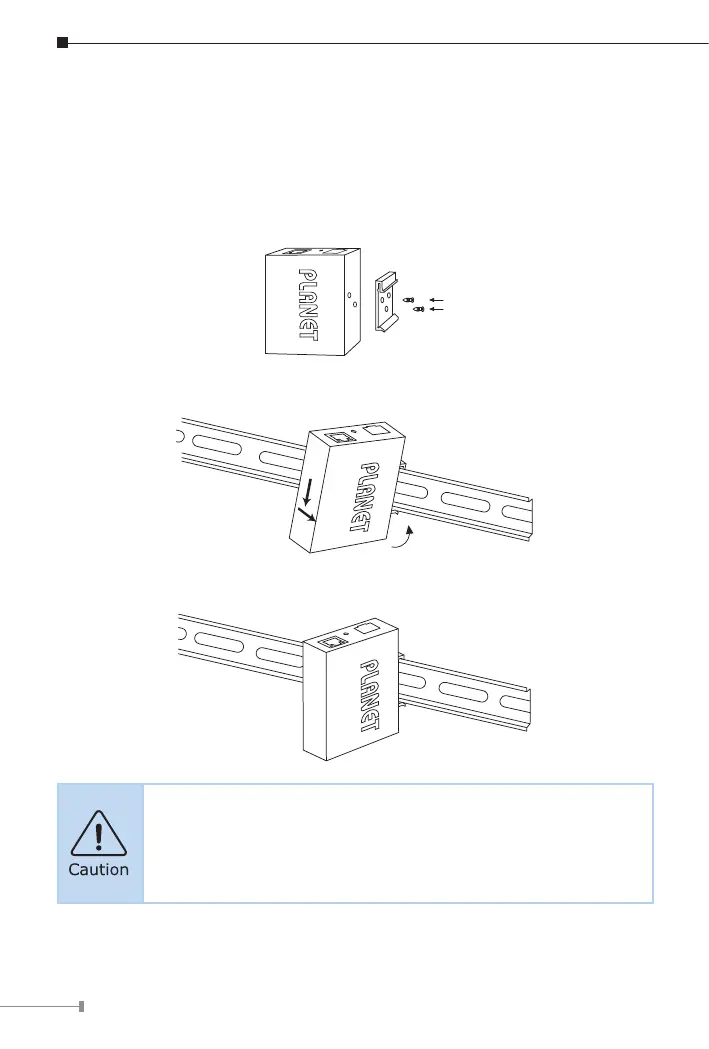

There are two DIN-rail holes on the left side of the LRE-101 that allows to
be easily installed by DIN-rail mounting. PLANET optional DIN-rail mounting kit
– RKE-DIN -- can be ordered separately. Refer to the following steps for the
DIN-rail mounting of the LRE-101:
Step 1: Screw the DIN rail on the LRE-101.
Step 2: Now slide the DIN rail into the track.
Step 3: Check whether the DIN rail is tightly on the track.
You must use the screws supplied with the mounting brackets.
Damage caused to the parts by using incorrect screws would
invalidate your warranty.
