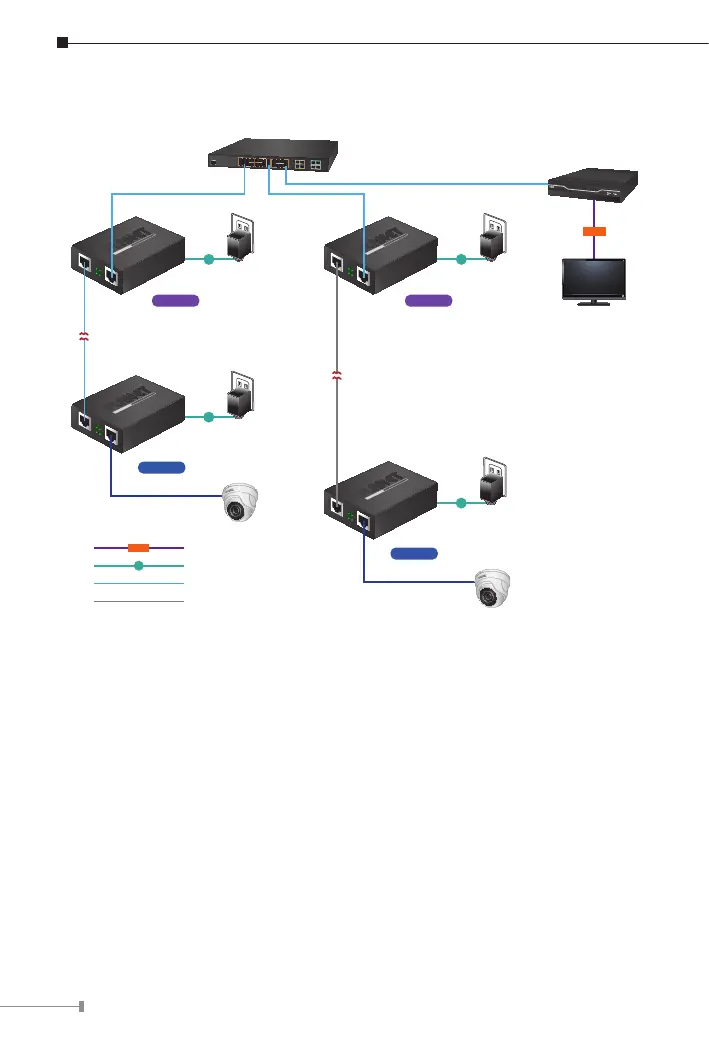

5.2 LRE-101 Multi-Point to Multi-Point Application (IP surveillance)
LRE-101
Master
LRE-101
Master
LRE-101
Slave
LRE-101
Slave
Monitor
DC
DC
DC
Video
DC
NVR
Ethernet Switch
DC
Power Line (DC)
100BASE-TX UTP
Telephone wire
Video Line
Video
IP Camera
IP Camera
1200m
700m
Building an IP surveillance system
Refer to the following procedure to set up an IP surveillance system with many
pairs of the LRE-101:
1. Set the LRE-101 to be in the Master or Slave mode from the DIP switch on
the rear panel.
2. Power on the LRE-101 by connecting its power source.
3. Power LED will illuminate.
4. Connect UTP cable or Phone wire to the Long Reach ports of two LRE-101
units.
5. LNK LED will illuminate and blink.
6. Connect Ethernet port to IP cameras via regular Cat5, 5e or 6 cable.
7. Install the NVR and monitor and connect to one Ethernet switch.
8. You can get data transmissions from all IP cameras.
