2.2.2 LRP-101CE Front Panel and Rear Panel

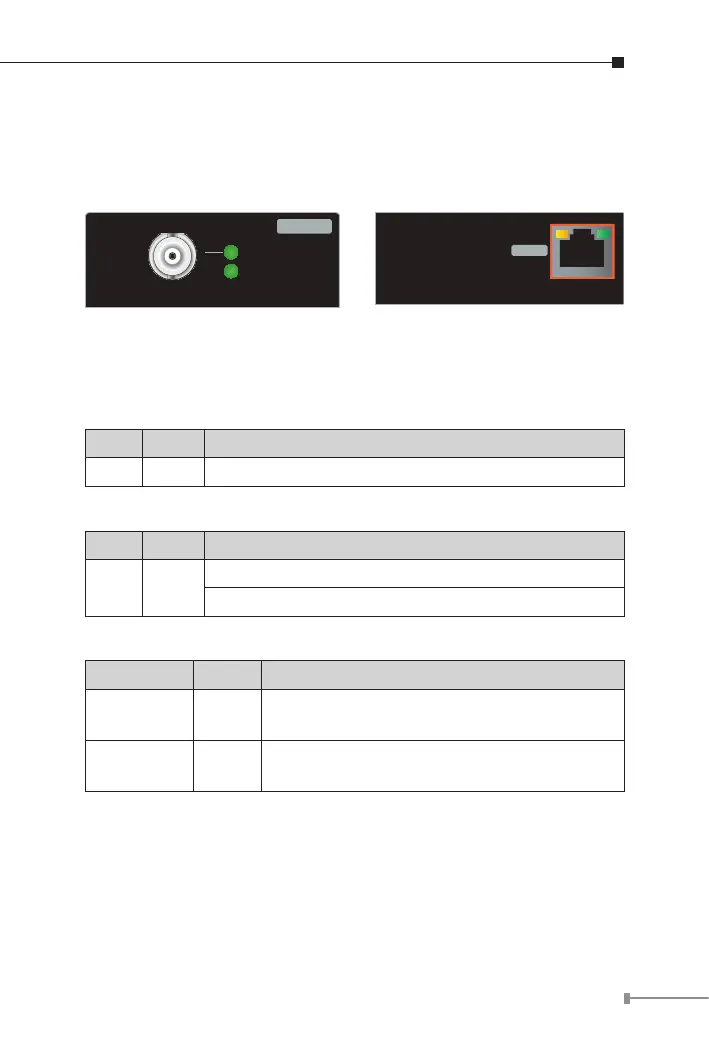

Figure 2-3 and Figure 2-4 show the front and rear panels of the
LRP-101CE Long Reach PoE over Coaxial Extender.
LNK/ACTPoE In-use
10/100BASE-TX
PoE OUT
Long Reach PoE Extender - Coax
LRP-101CE
LNK
PWR
LRP IN
Extender
Figure 2-3: LRP-101CE Front Panel Figure 2-4: LRP-101CE Rear Panel
2.2.3 LRP-101CE LED Indicators
 System
LED Color Function
PWR Green Lit: indicates the power is on.
 LRP Coaxial Interface
LED Color Function
LNK Green
Lit: indicates that the coaxial link is established.
Off: indicates that the coaxial link is down.
 RJ45 10/100BASE-TX Interface
LED Color Function
PoE-in-Use Amber
Lit: indicates the RJ45 Port is providing PoE
power.
LNK/ACT Green
Blink: indicates the extender is actively
sending or receiving data over that port.
