2.4.2 LRP-101UE Front Panel and Rear Panel

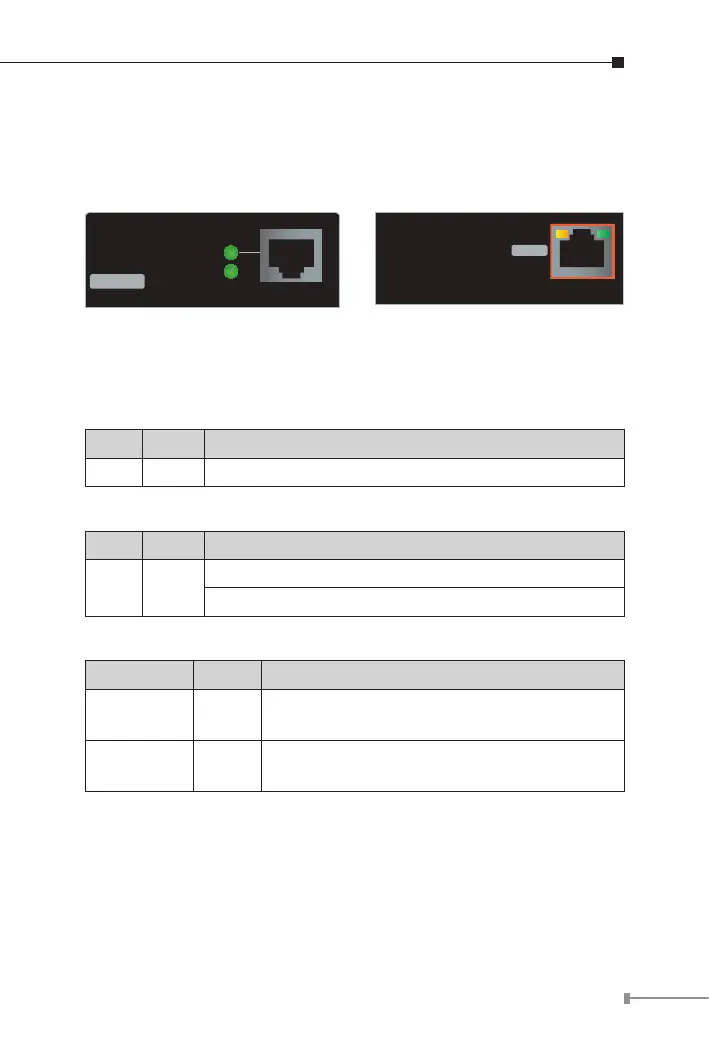

Figure 2-7 and Figure 2-8 show the front and rear panels of the
LRP-101UE Long Reach PoE over UTP Extender.
LNK/ACTPoE In-use
10/100BASE-TX
PoE OUT
Long Reach PoE Extender - UTP
LRP-101UE
LRP IN
LNK
PWR
Extender
Figure 2-7: LRP-101UE Front Panel Figure 2-8: LRP-101UE Rear Panel
2.4.3 LRP-101UE LED Indicators
 System
LED Color Function
PWR Green Lit: indicates the power is on.
 LRP UTP Interface
LED Color Function
LNK Green
Lit: indicates that the LRP UTP link is established.
Off: indicates that the LRP UTP link is down.
 RJ45 10/100BASE-TX Interface
LED Color Function
PoE-in-Use Amber
Lit: indicates the RJ45 Port is providing PoE
power.
LNK/ACT Green
Blink: indicates the extender is actively
sending or receiving data over that port.
