22
2.4 LRP-101UE

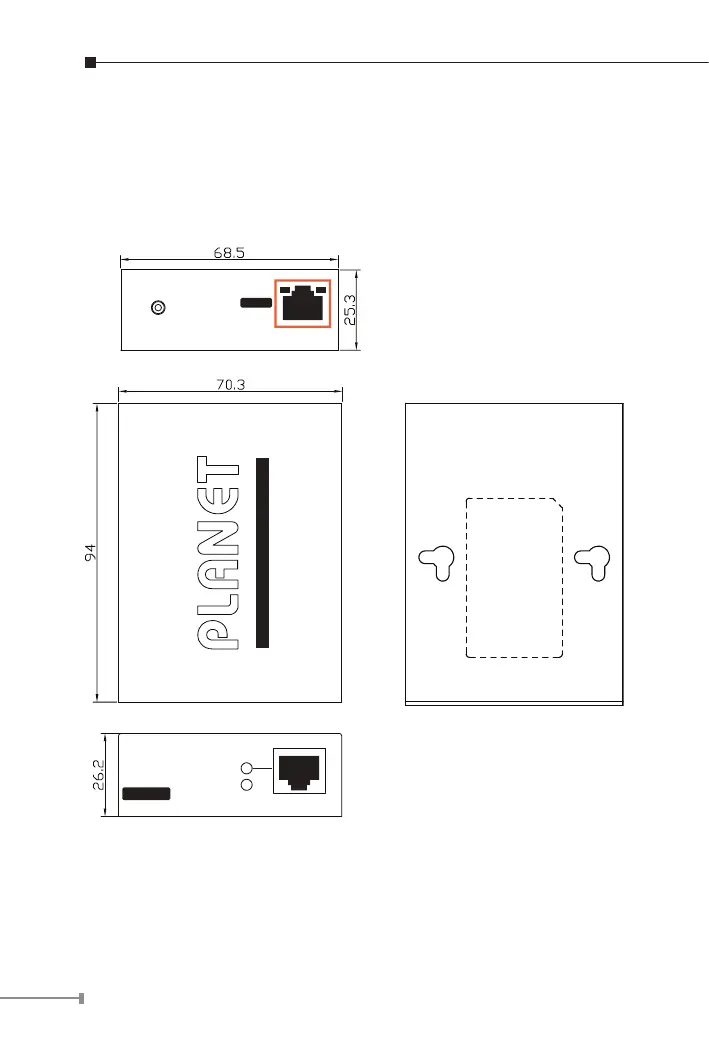

2.4.1 LRP-101UE Physical Dimensions
z LRP-101UE dimensions (W x D x H): 94 x 70.3 x 26.2 mm
Rear Panel
Top Panel
Bottom
Front Panel
Long Reach Power over Ethernet
Long Reach PoE Extender - UTP
LRP-101UE
LRP IN
LNK
PWR
Extender
LNK/ACTPoE In-use
10/100BASE-TX
PoE OUT
