2. HARDWARE DESCRIPTION
2.1 LRP-101CH

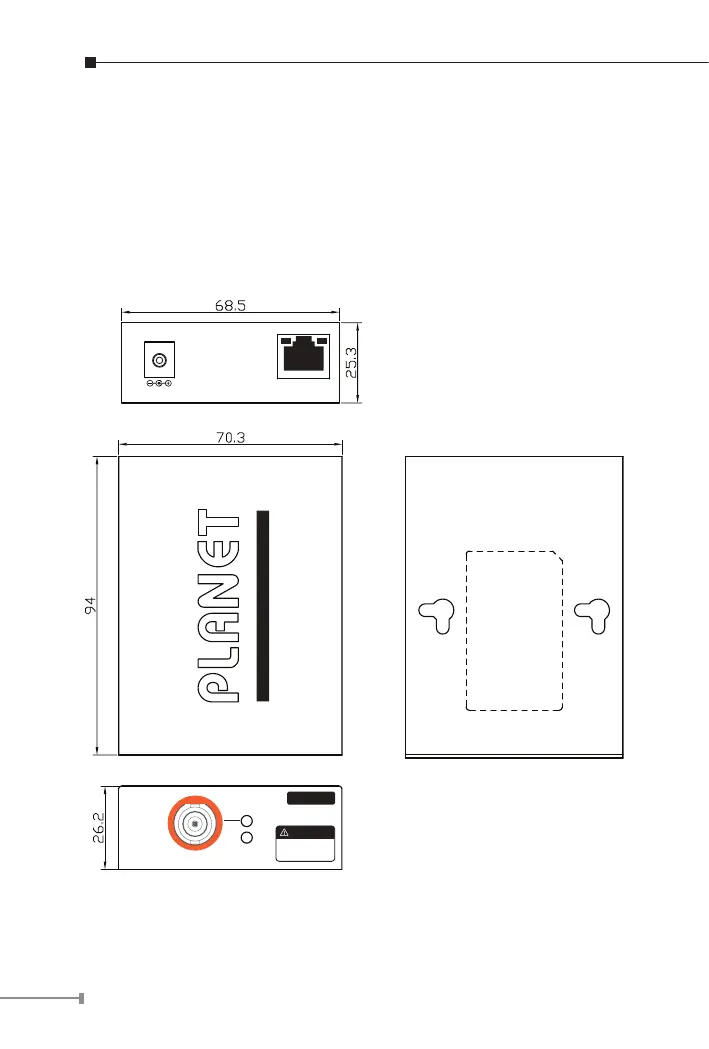

2.1.1 LRP-101CH Physical Dimensions
z LRP-101CH dimensions (W x D x H): 94 x 70.3 x 26.2 mm
48~56V DC IN
LNK/ACTPoE IN
10/100BASE-TX
LRP-101CH
LNK
PWR
LRP OUT
Injector
Long Reach PoE Injector - Coax
The LRP interface is
allowed to connect to
LRP Extender only.
CAUTION
Long Reach Power over Ethernet
Rear Panel
Top Panel
Bottom
Front Panel
