1. Before installation, please consider the distance
and watts value demand for PD devices. The LRP-
101C-KIT PoE powers output capacity and upload /
download performance depending on the length of
coaxial cable.
2. As there are various resistance values in the category
of RG-59/U or RG-6/U cable, the actual data rate will
vary on the quality of the copper wire and environ-
ment al factors.
3. PoE output capacity is based on different DC Power
Input / PoE Input.
4. The LRP-101CH has two power input options; only
one mode is available at one time. PoE power input
cannot be used if power input of DC 52V or 56V is
selected.

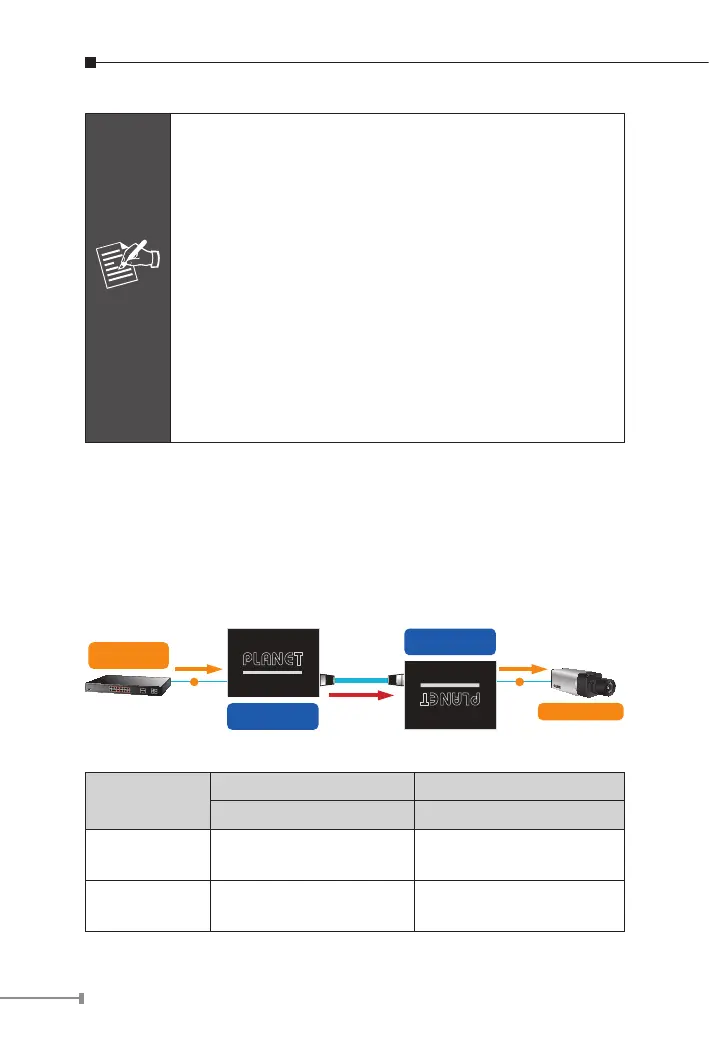

3.5 Applications of LRP-101U-KIT with UTP/Twisted-pair
Cable
Type 1 – LRP-101UH with PoE power input and LRP-101UE with PoE
power output
Power over UTP
802.3af/802.3at
PoE
PoE IP Camera
LRP-101UE
Long Reach PoE Extender
CAT5e/6
CAT5e/6
PoE
LRP-101UH
Long Reach PoE Injector
802.3af / 802.3at
PoE Switch
PoE
Long Reach Power over Ethernet
Long Reach Power over Ethernet
PoE
Functions
LRP Injector LRP Extender
LRP-101UH LRP-101UE
Power Input
RJ45 with 802.3at/af
PoE input
UTP with DC power over
UTP input
Power
Output
UTP with DC power over
UTP output
RJ45 with 802.3at/af
PoE output
