30

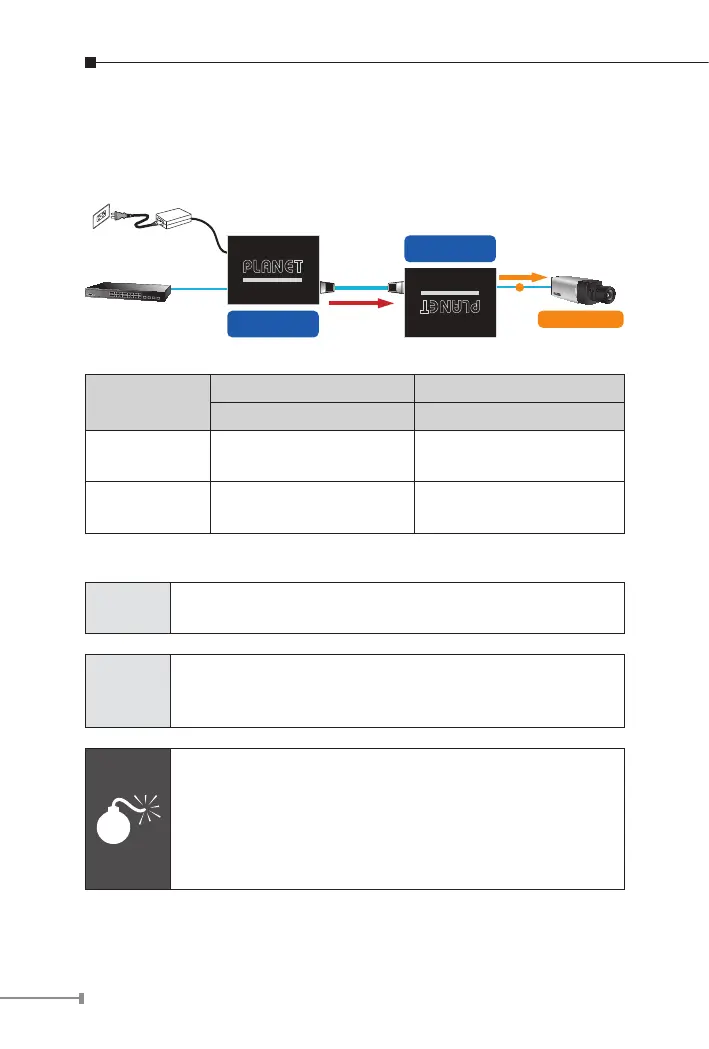

Type 2 – LRP-101UH with 48~56V power adapter and LRP-101UE with
PoE power output
Power over UTP
802.3af/802.3at
PoE
PoE IP Camera
Ethernet Switch
LRP-101UH
Long Reach PoE Injector
LRP-101UE
Long Reach PoE Extender
AC-to-DC Adapter
60W/48~56V DC IN
CAT5e/6
CAT5e/6
PoE
Long Reach Power over Ethernet
Long Reach Power over Ethernet
Functions
LRP Injector LRP Extender
LRP-101UH LRP-101UE
Power Input
Power adapter with
48~56V DC in
UTP with DC power over
UTP input
Power
Output
UTP with DC power over
UTP output
RJ45 with 802.3at/af PoE
output
Installation Instructions
Step 1
Remove the “Danger – No Ethernet” labels stuck on
the RJ45 LRP ports of LRP-101UH and LRP-101UE.
Step 2
Connect the LRP Injector (LRP-101UH) and LRP
Extender (LRP-101UE) to ends of RJ45 terminated long
UTP/twisted-pair cable.
Warning
1. Please do not connect any Ethernet equipment to LRP
OUT Port of the LRP-101UH; otherwise, it will damage
the Ethernet equipment.
2. Please do not connect any Ethernet equipment to LRP
IN Port of the LRP-101UE; otherwise, it will damage
the Ethernet equipment.
To Next Page
