16-Channel Network Video Recorder
NVR-1615
39

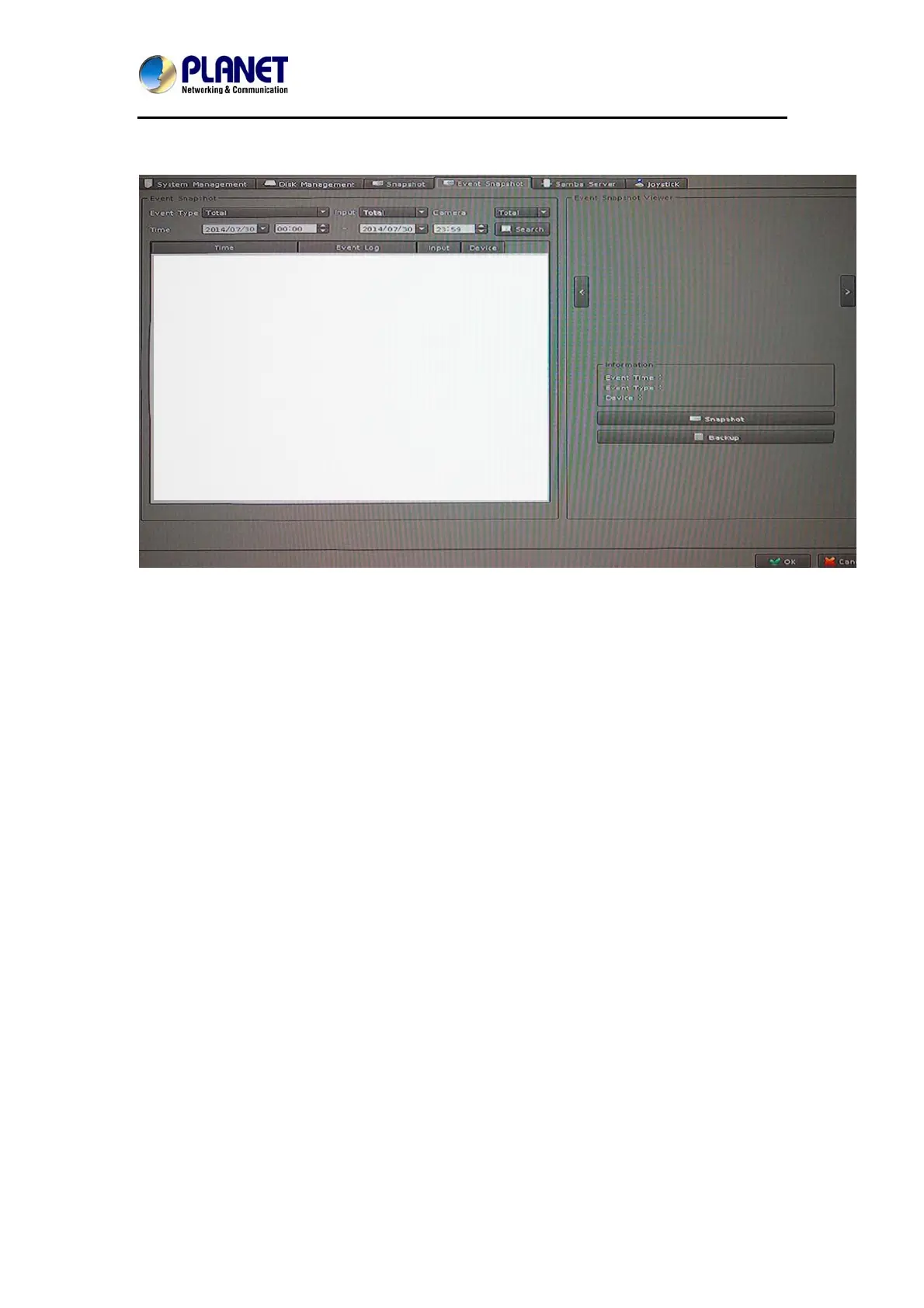

6.4. Event Snapshot
Event Snapshot:
Event Type: Select trigger snapshot event type.
Input: Select DI input port number.
Time: Select search time period.
Search: To search event snapshot based on the condition you set above.
Result Table:
Time:
Event Time.
Event Type: Triggered Event Type.
Input:
Event DI port number, if not DI event will fill -1.
Device:
Event triggered device ID.
Snapshot Viewer: Select an event from search result table and click the “Play” button.
The snapshot video will display on the right of window.
Next Frame: Click “>“ button for next frame.
Pre Frame: Click “<“ button for pre-frame.
Information:
Display snapshot video information.
Snapshot Button: Click “Snapshot” button and save snapshots to removable
device.
Backup Button: Clicking “Backup” button will back up this event video to removable
device.
